点击放大查看

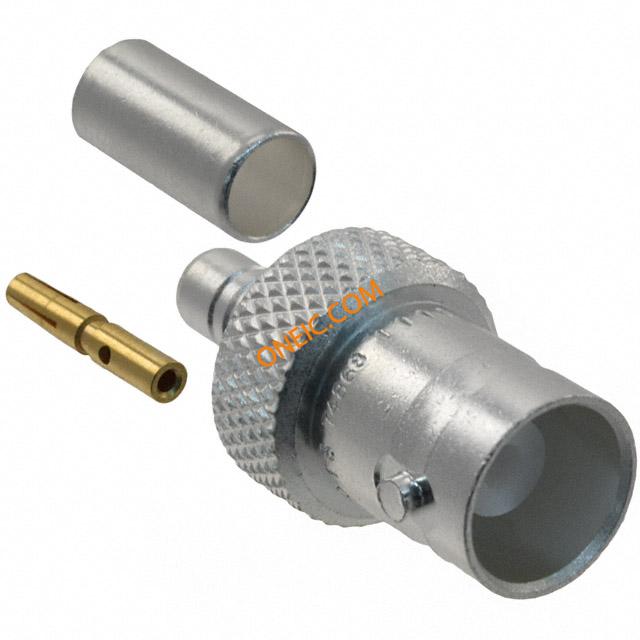

031-4327
| 制造商 | Amphenol Corporation |
| 描述 | CONN JACK BNC CRIMP RG58,141 CONN BNC JACK STR 50 OHM CRIMP Conn BNC RCP 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold connector, rf coaxial, bnc straight jack, crimp-crimp term, for rg/u 58, 141 cable |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant Part | 抗辐射加固 | No |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 最大频率 | 4GHz | ||
机械参数
| 直径 | 14.3 mm | 包装方式 | Bulk |
| 电缆类型 | RG 58/U,RG/U 141,58,58C | 本体表面处理 | Silver |
| 电缆组 | RG-58, 58C, 141, Belden 89907, 7806A | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Silver |
| 安装样式 | Cable | 壳体镀层 | Silver |
| 连接器样式 | BNC | 连接器用途 | Bayonet |
| 壳体材料 | Brass | 总长度 | 29.8 mm |
| 主要材料 | BNC | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethyl | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | BNC | 连接器性别 | RCP |
| 连接类型 | Coaxial Cable | 应用细节 | True MIL |
环境参数
| 工作温度 | -65°C ~ 165°C | ||
