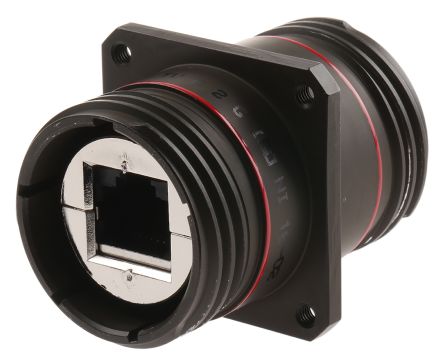

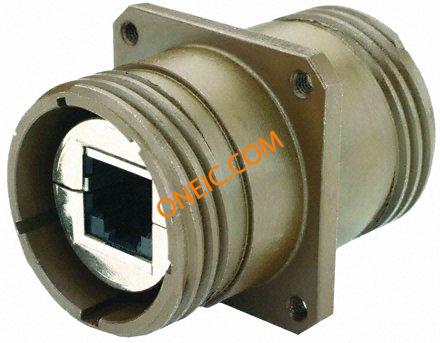

点击放大查看
RJFTVB2GISONI
| 制造商 | |
| 描述 | Conn RJ-45 Adapter RCP/RCP ST Panel Mount 1 Port COUPLER MODULAR 8POS-8POS Female to Female Panel Mount Field RJ45 Connector Modular Connectors / Ethernet Connectors Thru Bulkhead Recept Insert Metal Olive connector, metallic circ, bulkhead rj45 to rj45, metalized insert, green cadmium 面板安装 RJ45 连接器 母座至母座 |
| 分类 |
商业参数
| 零件号别名 | 308-0135 73K1309 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
机械参数
| 颜色 | Green | 深度 | 36.53mm |
| 高度 | 36.53 mm | 长度 | 48.5mm |
| 屏蔽 | Unshielded | 方向 | Straight |
| 重量（g） | 54.00000 | 安装类型 | Panel Mount |
| 连接器类型 | 母座至母座 | 安装样式 | Panel |
| 壳体材料 | Metal | 总长度 | 48.5 mm |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | ||
产品信息
| 类型 | RJ-45 Adapter | 等级 | Cat5e |
| 连接器性别 | RCP/RCP | 系列 | RJF TV |
| 产品特性 | Circular Bayonet Coupling | 方向 | 直 |
| USOC 编码 | RJ45 | 端口数 | 1 |
| 射频系列/标准 | RJFTV | 输出配置 | Panel Mount, Bulkhead |
| 性能类别 | Cat 5e, Class D | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 68 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
