点击放大查看

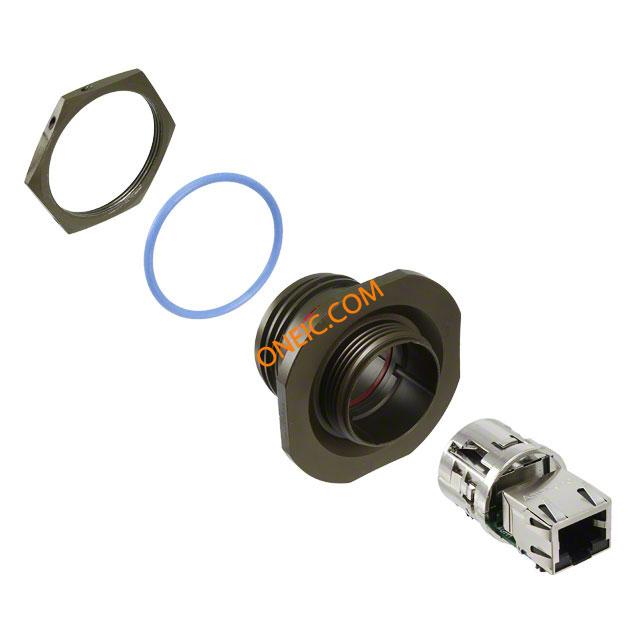

RJFTV71G
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS ST Jam Nut 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJF TV JAM NUT RECPT RJ45 OLIVE DRAB CAD RECEPT, JAM NUT, RJ45, RJF TV connector, metallic circ, jam nut receptacle, rj45, green cadmium finish |
| 分类 |
商业参数
| 零件号别名 | 01H7750 308-4710 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
机械参数
| 颜色 | Olive Drab | 高度 | 39.6 mm |
| 重量 | 0.045 | 屏蔽 | Unshielded |
| 重量（g） | 46.80000 | 安装类型 | Jam Nut |
| 连接器类型 | :Industrial Ethernet | 接触镀层 | Nickel |
| 安装样式 | Jam Nut | 触头材料 | :- |
| 总长度 | 43.09 mm | 安装特性 | Front Side Nut |
| 端接样式 | Solder Terminal | 触点数 | 8 POS |
| 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJFTV | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 制造商全称 | RJ Field TV Series |
| 类别编号 | Cat 5e | 端口数 | 1 Port |
| 射频系列/标准 | RJFTV | 性能类别 | Cat 5e, Class D |
| 应用细节 | For data acquisition and transmission in harsh environment, railways, radars | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | 加载位置数 | 8 |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

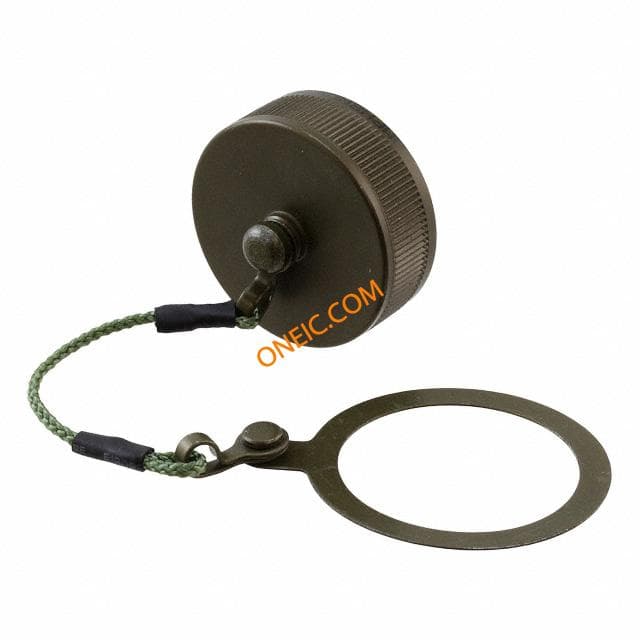

RJFTVC7G
amphenol pcd
Connector Accessories Metallic Cap Jam Nut Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Jam Nut Recept Cap Olive Drab DUST CAP, RECEPT, RJF TV, ALUMINIUM connector accessory, rj field tv, cap forjam nut receptacle(thread), green finish

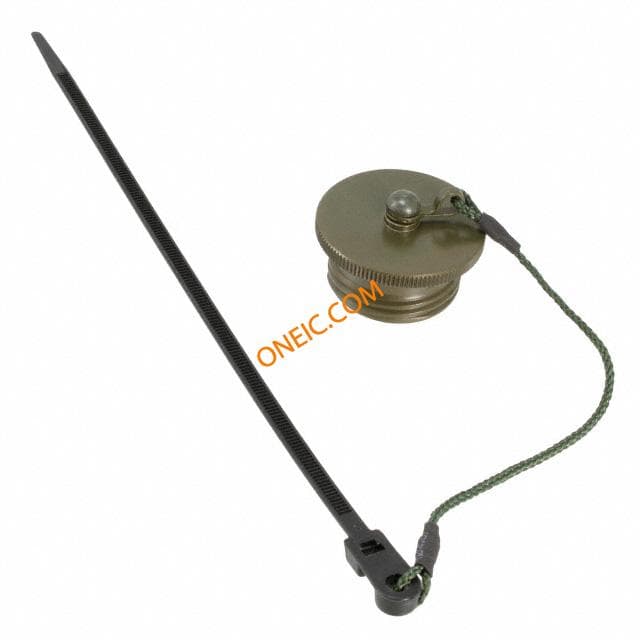

RJFTVC6G
amphenol pcd
Connector Accessories Metallic Cap Plug Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Metallic Plug Cap Olive Drab connector accessory, rj field tv, cap forstraight plug(thread coupling), green
RJFSFTP5E0305
amphenol pcd
Cable Assembly Cord Set 3.05m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL Cable Assemblies HI REL CABLE CORDSET CABLE CAT5E RJ45 PLUG-PLUG 3.05M Ethernet Cables / Networking Cables HI REL CABLE CORDSET HARNESS, PLUG, RJ45-RJ45, RJF, 3.05M RJ FIELD CORDSET CAT5E W/ RJ45 PLUG EACH END 3.05M / 10 FEET
RJFSFTP5E0762
amphenol pcd
Cable Assembly Cord Set 7.62m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL Cable Assemblies Cat5e w/RJ45 plg each end 25ft CABLE CAT5E RJ45 PLUG-PLUG 7.62M Ethernet Cables / Networking Cables Cat5e w/RJ45 plg each end 25ft HARNESS, PLUG, RJ45-RJ45, RJF, 7.62M RJ FIELD CORDSET CAT5E W/ RJ45 PLUG EACH END 7.62M / 25FEET

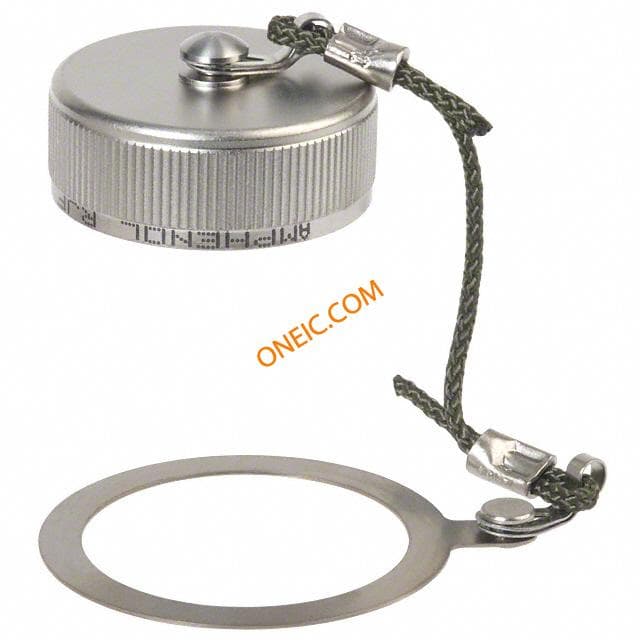

RJFTVC7N
