RJFTV2PEM1G
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Modular Connectors / Ethernet Connectors RJF TV PM RECPT METAL GLAND BS OLIVE RECEPT, PANEL, RJ45, IP67, RJF TV connector, metal circular, recept w/bkshl, metal gland, rj45 ethernet, olive drab |
| 分类 |
商业参数
| 产品 | Industrial Ethernet Connectors | 零件号别名 | 20J3969 308-0048 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS non-compliant | 海关税号 | 85366190 |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Olive Drab | 深度 | 36.53 mm |
| 高度 | 36.53 mm | 重量 | 0.1 |
| 屏蔽 | Unshielded | 重量（g） | 98.40000 |
| 安装类型 | Panel Mount | 连接器类型 | :Industrial Ethernet |
| 接触镀层 | :- | 安装样式 | Flange |
| 触头材料 | :- | 壳体材料 | Cadmium |
| 总长度 | 92 mm | 安装特性 | Metal Gland |
| 触点数 | 8 POS | 外壳材料及表面处理 | Aluminum, Olive Drab Cadmium Plated |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | RJFTV | 产品特性 | Circular Bayonet Coupling |
| USOC 编码 | RJ45 | 类别编号 | Cat 5e |
| 端口数 | 1 Port | 射频系列/标准 | RJFTV |
| 性能类别 | Cat 5e | 转换端（适配器端） | Jack, 8p8c (RJ45) |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | 加载位置数 | 8 |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
文档与媒体
相关型号
JE19
amphenol pcd
GASKET FOR RJFTV SERIES NIOBIUM OXIDE SMT CONN ACCY GASKET Modular Connectors / Ethernet Connectors RJ FIELD TV GASKET PM RECPT GASKET, PANEL ENGINEERING MATERIALS, GASKET connector accessory, rj field tv, panel gasket for square flange receptacle

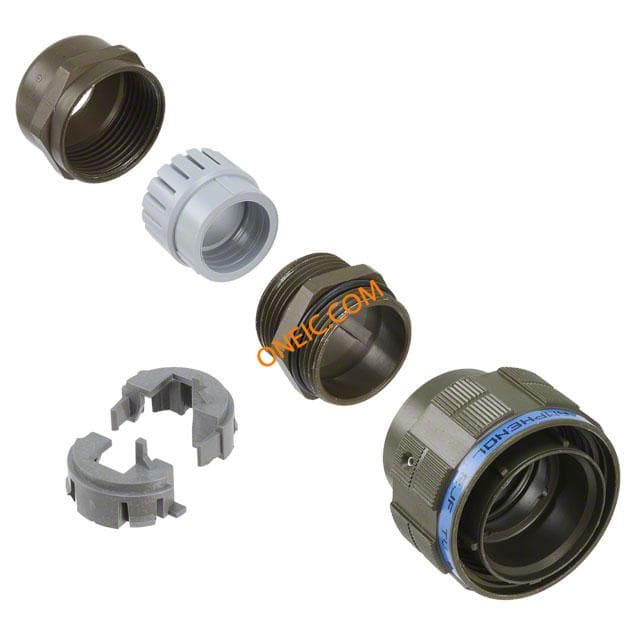

RJFTV6MG
