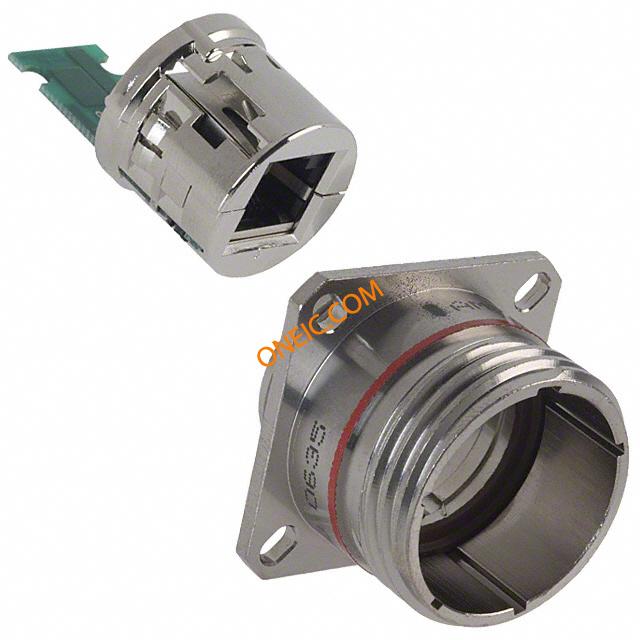

RJFTV22N00
| 制造商 | |
| 描述 | Cable Assembly Cord Set 8 POS RJ-45 to 8 POS RJ-45 RCP-PL Solder-Crimp SQUARE FLANGE RECEPT RJ45CORDSE CONN MOD JACK 8P8C Modular Connectors / Ethernet Connectors RJFTV PM RECPT SOLDER NICKEL connector, metallic circ, panel mount recept, rj45 to 8 hole pc board, nickel fin |
| 分类 |
商业参数
| 最小起订量 | 10 | 单位包装 | 1 |
| 其他名称 | APC1077 | 零件号别名 | 20J3985 308-0125 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 汽车级 | NO |
| 无铅定义 | RoHS-conform | 保护特性 | 67 |
机械参数
| 颜色 | Black | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 电缆类型 | Cord Set | 方向 | Straight |
| 端接方式 | Solder-Crimp | 重量（g） | 31.20000 |
| 触头类型 | NICKEL | 安装类型 | Panel Mount, Bulkhead |
| 卡扣方向（或“接线片方向”） | User Selectable | 连接器类型 | 8POS RJ-45 to 8POS RJ-45 |
| 接触镀层 | Nickel | 排数 | 1 |
| 典型触点布局 | RECEPTACLE | 触点材料 - 镀层 | -55 TO 85 |
产品信息
| 连接器性别 | RCP-PL | 系列 | RJFTV |
| 产品特性 | Circular Threaded Coupling | 匹配码 | RJFTV22N00 |
| USOC 编码 | RJ45 | 端口数 | 1 |
| 标准交期 | 10 weeks | 性能类别 | Cat 5e, Class D |
| 位置/触点数量 | 8p8c (RJ45, Ethernet) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | SCREW°C | ||
