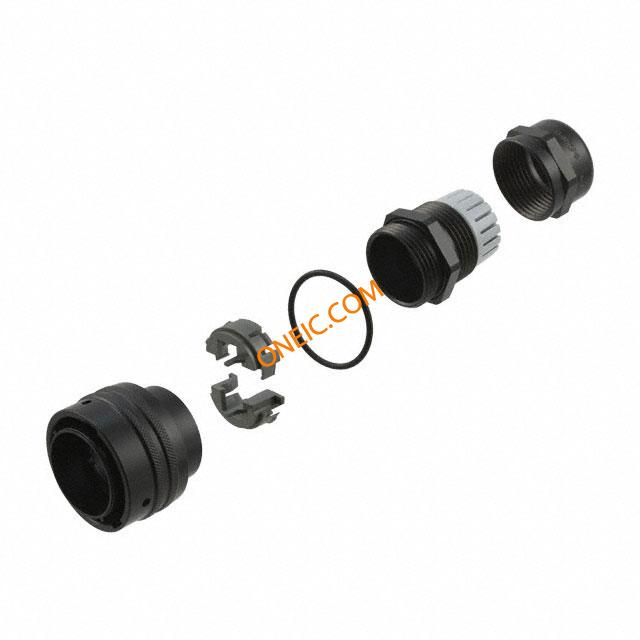

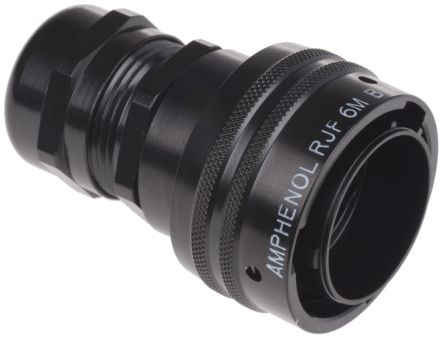

RJF6MB
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e Conn IP67 RJ-45 PL 8 POS ST Cable Mount 8 Terminal 1 Port Cat 5e CONN MOD HOUSING RJ45 UNSHIELDED Plug,metal gland,black coating Modular Connectors / Ethernet Connectors Plug w/ Metal Gland Black connector, metal circular, straight plug w/metal gland, rj45 ethernet, black finish Amphenol 直 公 RJ45 连接器 , 电缆安装型 |
| 分类 |
商业参数
| 其他名称 | APC1042 | 零件号别名 | 06H1475 308-0086 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
机械参数
| 颜色 | Black | 深度 | 34.9mm |
| 长度 | 57.8mm | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 方向 | Straight |
| 重量（g） | 60.40000 | 安装类型 | Cable Mount |
| 连接器类型 | Housing for Prewired RJ45 Cordset | 紧固类型 | Bayonet Lock |
| 总长度 | 57.8 | 触点数 | 8 |
产品信息
| 备注 | Plug Not Provided | 类型 | RJ-45 |
| 连接器性别 | PL | 系列 | RJF |
| 产品特性 | Shock Resistant, Toolless, Vibration Resistant | 方向 | 直 |
| USOC 编码 | RJ45 | 主要用途 | Shock Resistant, Toolless, Vibration Resistant |
| 类别编号 | Cat 5e | 端口数 | 1 |
| 输出配置 | Free Hanging (In-Line) | 加载位置数 | 8 |
环境参数
| 插拔次数 | 500 | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
RJFC6B
amphenol pcd
Connector Accessories Metallic Cap Plug Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Black connector accessory, rj field, cap for straight plug(bayonet coupling), black
RJFC6N
amphenol pcd
Connector Accessories Metallic Cap Plug Nickel CONN ACCY CAP Metalic Cap for plug,Nickel Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Nickel connector accessory, rj field, cap for straight plug(bayonet coupling), nickel Amphenol 防尘盖
RJFC6G
amphenol pcd
Connector Accessories Metallic Cap Plug Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Metallic Plug Cap RJ45 Cat5e Olive PLUG DUST CAP, METAL connector accessory, rj field, cap for straight plug(bayonet coupling), green
