RJF2SA1B
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e ADAPTER MODULAR 8POS-PCB connector;metal circ;panel mount recept;rj45 to rj45;transversal seal;black fin Modular Connectors / Ethernet Connectors RJ45 Sq Flange Recpt Transversal Seal Blk connector, metal circ, panel mount recept, rj45 to rj45, transversal seal, black fin |
| 分类 |
商业参数
| 零件号别名 | 20J4006 308-0116 | 产品类别 | Modular Connectors / Ethernet Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 屏蔽 | Unshielded |
| 重量（g） | 26.00000 | 安装类型 | Panel Mount |
| 安装样式 | Panel | 端接样式 | Solder Terminal |
| 外壳材料及表面处理 | Metal | ||
产品信息
| 类型 | RJ-45 | 等级 | Cat5e |
| 连接器性别 | RCP | 系列 | RJF2S |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 端口数 | 1 | 输出配置 | Panel Mount, Square Flange |
| 性能类别 | Cat 5e, Class D | 转换端（适配器端） | PCB |
| 转换自（适配器端） | Jack, 8p8c (RJ45) | ||
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 - Dust Tight, Waterproof |
| 工作温度 | -40°C ~ 85°C | ||
相关型号
JE18
amphenol pcd
Connector Accessories Panel Gasket For Square Flange Receptacle CONN ACCY GASKET BLACK Circular Connector Seal Gasket Firewire Connectors RJ FIELD GASKET PM RECPT GASKET, PANEL connector accessory, panel gasket for rjfield square flange receptacle Flat gasket for appliance socket, JE18, Amphenol Gasket

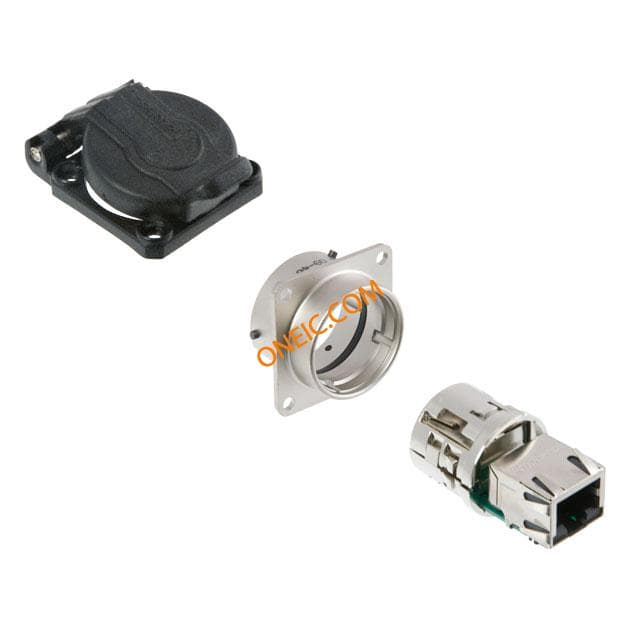

RJF21NSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Nickel And Metallized Insert CONN ACCY CAP Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle connector, metal circular, snap cap recept, metalized insert, rj45 ethernet, nickel

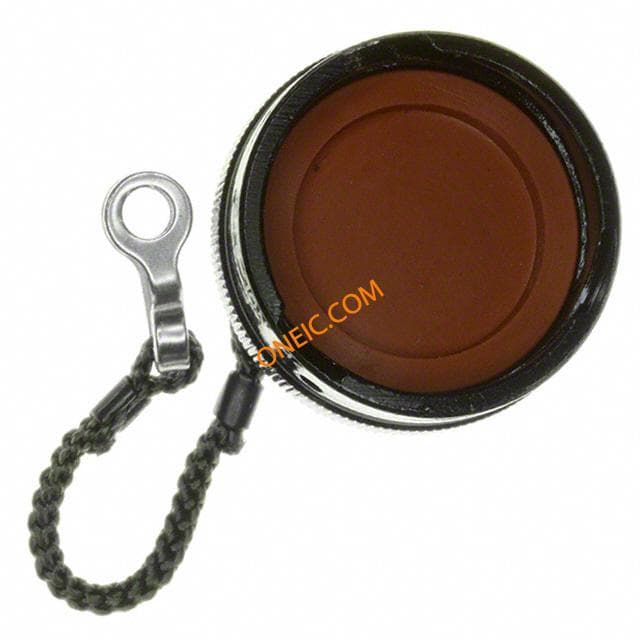

RJFC2B
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for square flange recept, black fin

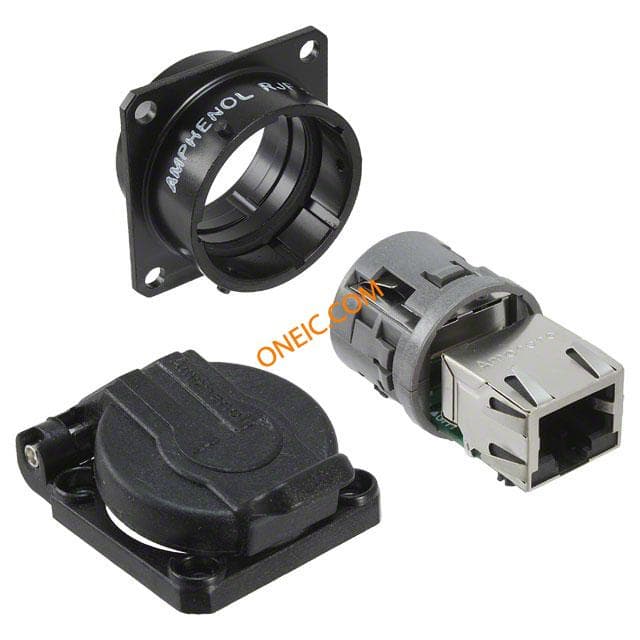

RJF21BSCC
amphenol pcd
Connector Accessories Self Closing Cap For RJ45 Black CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk connector, metal circ, panel mount receptw/snap cap, plain insert, rj45, black fin

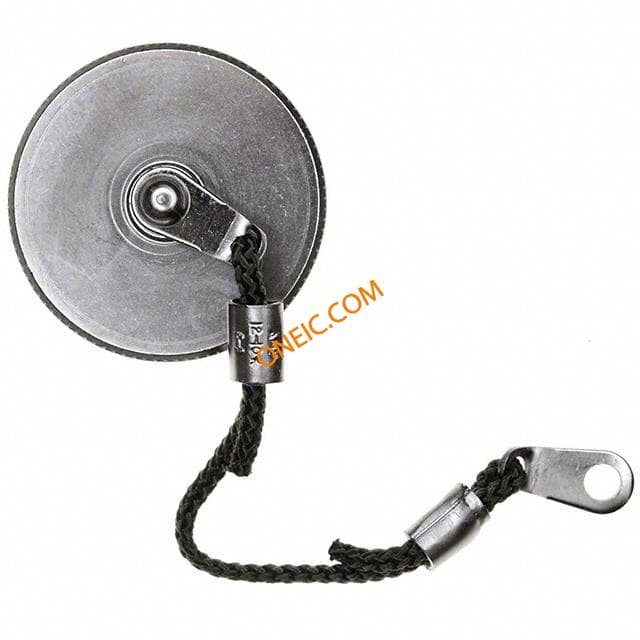

RJFC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel CONN ACCY CAP metal cap,sq flange rcp,fem, RJ45 Nickel Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Nickel RECEPTACLE DUST CAP, METAL connector accessory, rj field, cap for square flange receptacle, nickel

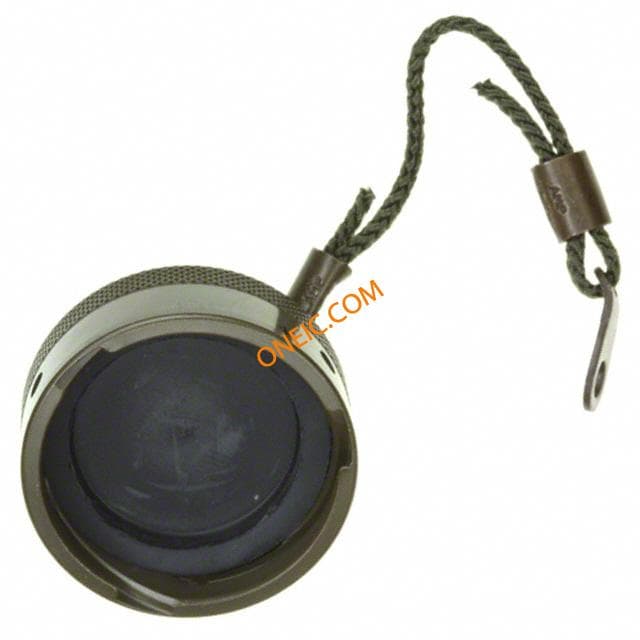

RJFC2G
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Olive Drab Cadmium CONN ACCY CAP OLIVE Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Olive DUST CAP & COVER, RJFC2G Protection Cap; for Square Flange Receptacle; RJ Field; Olive Drab Cadmium
