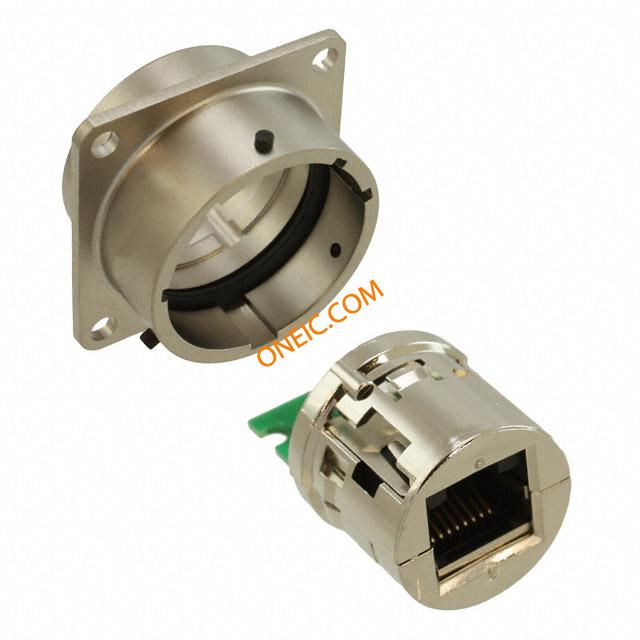

RJF22N00
| 制造商 | Amphenol Corporation |
| 描述 | Conn RJ-45 RCP 8 POS Solder ST Panel Mount 8 Terminal 1 Port Cat 5e CONN MOD JACK 8P8C connector;metal circ;panel mount recept;rj45 to 8-hole pc board;nickel finish Modular Connectors / Ethernet Connectors RJ45 Cordset PCB Solder Sq Flange connector, metal circ, panel mount recept, rj45 to 8-hole pc board, nickel finish |
| 分类 |
商业参数
| 其他名称 | APC1032 | 零件号别名 | 308-0022 93K7828 |
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| LED | Does Not Contain LED | ||
机械参数
| 颜色 | Black | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 钳口开口 | User Selectable | 方向 | Straight |
| 端接方式 | Solder | 重量（g） | 21.60000 |
| 安装类型 | Panel Mount | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 安装样式 | Panel |
| 排数 | 1 | 壳体材料 | Metal |
| 端接样式 | Solder Terminal | 触点数 | 4 |
产品信息
| 类型 | RJ-45 | 等级 | Cat5e |
| 连接器性别 | RCP | 系列 | RJF |
| 产品特性 | Circular Bayonet Coupling | USOC 编码 | RJ45 |
| 端口数 | 1 | 输出配置 | Panel Mount, Flange |
| 性能类别 | Cat 5e | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 密封等级 | IP 67 |
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -40°C ~ 85°C |
