RJF21B

制造商	Amphenol Corporation
描述	Conn RJ-45 RCP 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e COUPLER MODULAR 8POS-8POS Female Square Flange Panel Mount Field RJ45 Connector, LAN Category Cat5e connector;metal circ;panel mount recept;4-hole square flange;rj 45;black finish Modular Connectors / Ethernet Connectors Female RJ45 Black Sq Flange Recpt Blk CONNECTOR, SEALED ETHERNET connector, metal circ, panel mount recept, 4-hole square flange, rj 45, black finish 方形法兰面板安装 RJ45 连接器母, Cat5e
分类	连接器解决方案模块化连接器模块化连接器（通用型）

对参数有疑问？问 AI 助手

商业参数

零件号别名	03H9929 308-4605	产品类别	Modular Connectors / Ethernet Connectors
标准包装数量	Bulk

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
材料阻燃等级	UL 94 V-0

电气参数

连接器类型 - 电压输入

Cat5e

机械参数

颜色	Black	深度	39.1mm
宽度	33.3mm	高度	33.3 mm
长度	33.3mm	重量	0.02636
屏蔽	Unshielded	方向	Straight
重量（g）	25.60000	安装类型	Panel Mount
连接器类型	:Sealed Ethernet	接触镀层	:-
安装样式	Flange	触头材料	:-
总长度	39.1 mm	主要材料	Sealed
端接样式	Solder Terminal	触点数	8 POS
接触件端接	:Solder	安装孔直径	0.138 in.
外壳材料及表面处理	Metal	第一连接器安装类型	:Panel

产品信息

类型	RJ-45	连接器性别	RCP
系列	RJF	产品特性	Circular Bayonet Coupling
USOC 编码	RJ45	插座类型	Square Flange
制造商全称	RJField Series	类别编号	Cat 5e
端口数	1	射频系列/标准	RJF
性能类别	Cat 5e	应用细节	For robotics, industrial process control, CNC machines, special machines, motion control, data acquisition and transmission in harsh environments and tele-maintenances
转换端（适配器端）	Jack, 8p8c (RJ45)	转换自（适配器端）	Jack, 8p8c (RJ45)
加载位置数	8

环境参数

额定等级	Cat5e	密封等级	IP67
防护等级	IP67 - Dust Tight, Waterproof	工作温度	-40°C ~ 85°C

文档与媒体

PDF 文档

RJF US RevI Nov04.pdf

PDF 文档

RJF Series

PDF 文档

RJF ANG RevI Nov04.pdf

PDF 文档

RJF.pdf

相关型号

JE18

amphenol pcd

Connector Accessories Panel Gasket For Square Flange Receptacle CONN ACCY GASKET BLACK Circular Connector Seal Gasket Firewire Connectors RJ FIELD GASKET PM RECPT GASKET, PANEL connector accessory, panel gasket for rjfield square flange receptacle Flat gasket for appliance socket, JE18, Amphenol Gasket

¥5.5488

详情

RJF21NSCC

amphenol pcd

Connector Accessories Self Closing Cap For RJ45 Nickel And Metallized Insert CONN ACCY CAP Modular Connectors / Ethernet Connectors Female RJ45 Nickel Sq Flange Receptacle connector, metal circular, snap cap recept, metalized insert, rj45 ethernet, nickel

¥226.3040

详情

RJFC2B

amphenol pcd

Connector Accessories Metallic Cap Square Flange Receptacle Black Coating CONN ACCY CAP BLACK Modular Connectors / Ethernet Connectors Sq Flange Recpt Cap RJ45 Cat5e Black connector accessory, rj field, protectioncap for square flange recept, black fin

¥143.8200

详情

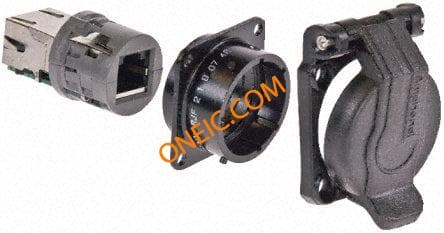

RJF21BSCC
