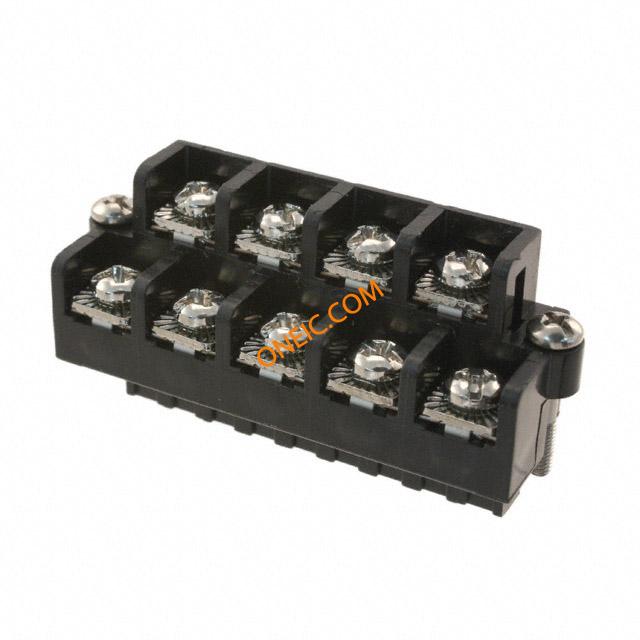

FXPT09200E
| 制造商 | |
| 描述 | Barrier Terminal Blocks FLEXIPLUG W/EARS 5.08MM 9POS BLACK TERM BLOCK PLUG 18POS 5.08MM Conn; Term Blk; Plug; Screw; 9; 5.08 mm; 26-12 AWG; 15 A; 300 V; w/Locking Ears |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 其他名称 | APC1148 |
| 零件号别名 | 308-0168 | 产品类别 | Barrier Terminal Blocks |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
机械参数
| 颜色 | Black | 间距 | 3.5 mm |
| 包装方式 | Bulk | 导线线规 | 26 |
| 端接方式 | Screw | 安装类型 | Free Hanging (In-Line) |
| 安装样式 | Through Hole | 插头进线方向 | 90° |
| 壳体材料 | Polyphenylene Oxide (PPO) | 端接样式 | Screw |
| 触点数 | 9 | 位数 | 18 |
| 接线端子类型 | Plug, Female Sockets | 线规或范围 - AWG | 26-12 |
| 线规或范围 - mm² | 12 | ||
产品信息
| 类型 | Wire to Board | 产品特性 | Flange, Retention Latches (Non-Wire Side) |
| 层数 | 2 | 每层位数 | 9 |
环境参数
| 工作温度 | 0 C to + 105 C | ||
