点击放大查看

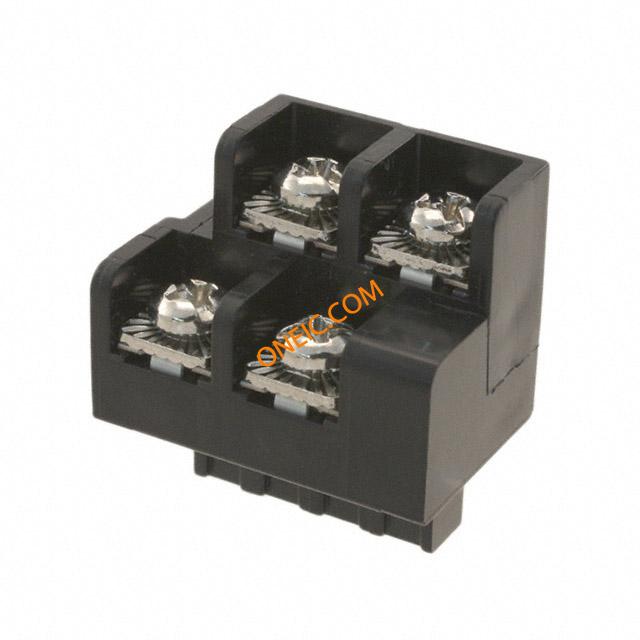

FXPT04200
| 制造商 | |
| 描述 | Conn Terminal Block F 4 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 8POS 5.08MM Barrier Terminal Blocks FLEXIPLUG 5.08MM 4POS BLACK |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品 | Barrier Terminal Blocks | 其他名称 | APC1140 |
| 产品类别 | Barrier Terminal Blocks | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 长度 | 27.18 mm | 包装方式 | Bulk |
| 导线线规 | 12-26 AWG | 端接方式 | Screw |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 安装样式 | Through Hole | 排数 | 1 |
| 插头进线方向 | 90° | 壳体材料 | Polyphenylene Oxide (PPO) |
| 端接样式 | Screw | 触点数 | 4 |
| 位数 | 8 | 接线端子类型 | Plug, Female Sockets |
| 线规或范围 - AWG | 26-12 | 线规或范围 - mm² | 12 |
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Non-Wire Side) | 层数 | 2 |
| 每层位数 | 4 | ||
