点击放大查看
FWFTV21N
| 制造商 | |
| 描述 | Conn IEEE 1394 RCP 4 POS ST Panel Mount 4 Terminal 1 Port CONN FIREWIRE RCPT-RCPT PANEL MT Firewire Connectors IEEE TYPE A PM RECPT NICKEL connector, metal circular, panel mount receptacle, firewire(ieee 1394), nickel finis |
| 分类 |
商业参数
| 产品 | IEEE 1394 Firewire Connectors | 其他名称 | APC1013 |
| 零件号别名 | 36K2884 | 产品类别 | Firewire Connectors |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 供电电压 | IEEE 1394 | ||
机械参数
| 颜色 | Black | 重量（g） | 26.40000 |
| 安装类型 | Panel Mount | 连接器类型 | Firewire (IEEE 1394) |
| 接触镀层 | Nickel | 安装样式 | Panel |
| 端接样式 | Solder Pin | 触点数 | 6 |
产品信息
| 类型 | IEEE 1394 | 连接器性别 | RCP |
| 产品特性 | Sealed against fluids and dusts, Shock, Vibration and Traction resistant | 端口数 | 1 |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | - 55 C to + 85 C |
文档与媒体
相关型号
FWFTV6G
amphenol pcd
Conn IEEE 1394 PL 4 POS ST Cable Mount 4 Terminal 1 Port CONN FIRE WIRE PLUG GREEN Firewire Connectors IEEE TYPE A PLUG OLIVE DRAB CAD connector, metal circular, str plug, firewire(ieee 1394)field, olive drab finish
JE15
amphenol pcd
Connector Accessories Panel Gasket For Square Flange Receptacle GASKET FOR FW & USB SQ FLNG RCPT Circular Connector Seal Gasket Firewire Connectors USB/IEEE GASKET connector assessory, gasket for panel receptacle, usb field and firewire field 连接器封套 密封填料, -55 → +85 °C
FWFTV6N
amphenol pcd
Conn IEEE 1394 PL 4 POS ST Cable Mount 4 Terminal 1 Port CONN FIREWIRE PLUG Firewire Connectors IEEE TYPE A PLUG NICKEL FIREWIRE FIELD PLUG NICKEL

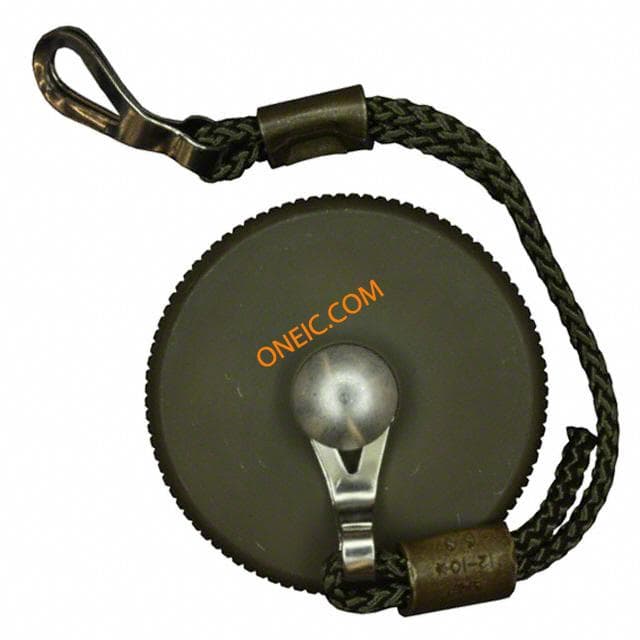

FWFTVC2G
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Olive Drab Cadmium CAP FW METAL FOR SQ FLANGE RCPT Firewire Connectors FW FIELD CAP PM RECPT OLIVE connector accessory, firewire field, metal cap, lanyard, for panel mount, olive drab

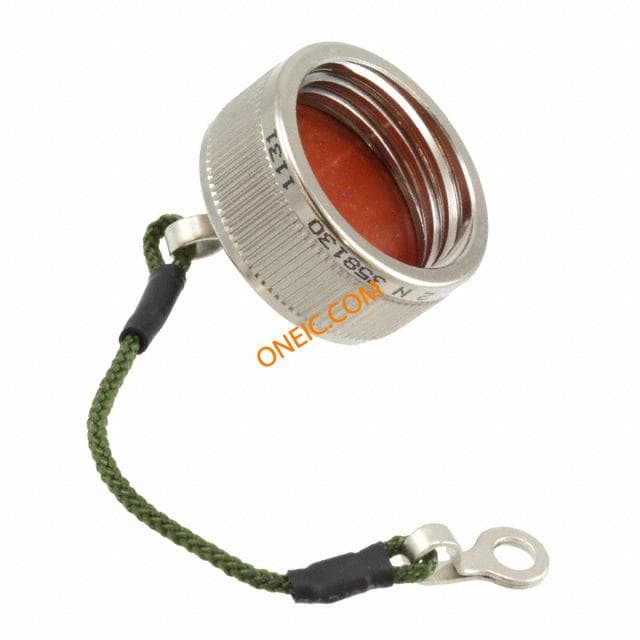

FWFTVC2N
amphenol pcd
Connector Accessories Metallic Cap Square Flange Receptacle Nickel Finish CAP FOR SQ FLANGE FIREWIRE RCPT Firewire Connectors FW FIELD CAP PM RECPT NICKEL connector accessory, firewire field, metal cap, lanyard, for panel mount, nickel fin
