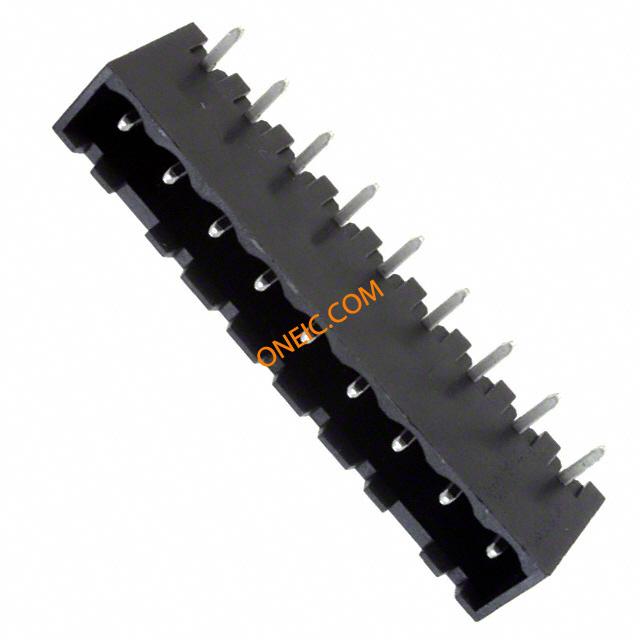

ELFH09210
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 9 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 9POS CLOSED Conn; Term Blk; PCB; 9; 5.08 mm; Horiz.; Black; 15 A; 300 V |
| 分类 |
商业参数
| 产品 | Headers | 其他名称 | APC1265 |
| 零件号别名 | 308-0182 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
| 绝缘电阻 | 100000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Tin-Lead |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 9 |
| 位数 | 9 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 9 | ||
文档与媒体
相关型号

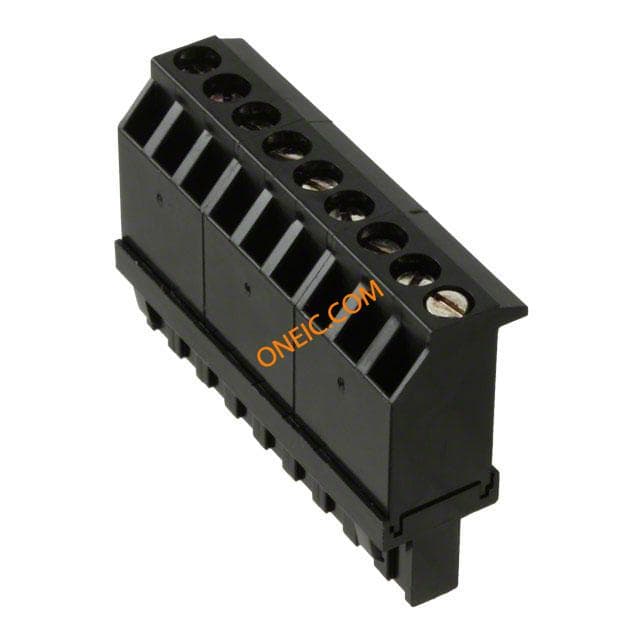

ELFF09230
