点击放大查看

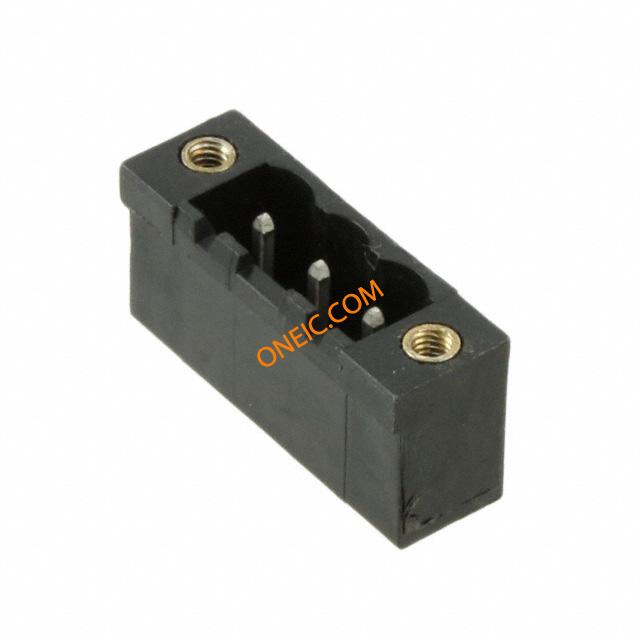

ELFH03250E
| 制造商 | |
| 描述 | Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 3POS EARED TERM BLOCK HDR 3POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 3 Way 1 Row Vertical PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 3; 5.08 mm; Vert.; Black; 15 A; 300 V; w/ Locking Ears |
| 分类 |
商业参数
| 产品 | Headers | 其他名称 | APC1253 |
| 零件号别名 | 308-0216 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Tin |
| 排数 | 1 | 触头材料 | Brass |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 3 | 位数 | 3 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 系列 | ELFH |
| 产品特性 | Flange | 层数 | 1 |
| 每层位数 | 3 | ||
文档与媒体
相关型号
ELFF03220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET Pluggable Terminal Blocks Plug TERM BLOCK PLUG 3POS 5.08MM
ELFT03260
amphenol pcd
Conn Terminal Block F 3 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM
ELFF03240
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM
ELFK03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM Pluggable Terminal Blocks 3 POS 45 DEG ANGLE
ELFP03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 15A Pluggable Terminal Blocks 3P Right Angle Panel Mount Terminal Block TERM BLOCK PLUG 3POS STR 5.08MM
ELFT03250
amphenol pcd
Conn Terminal Block F 3 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM Conn Terminal Blocks F 3 POS 10.16mm Screw ST Cable Mount 15A

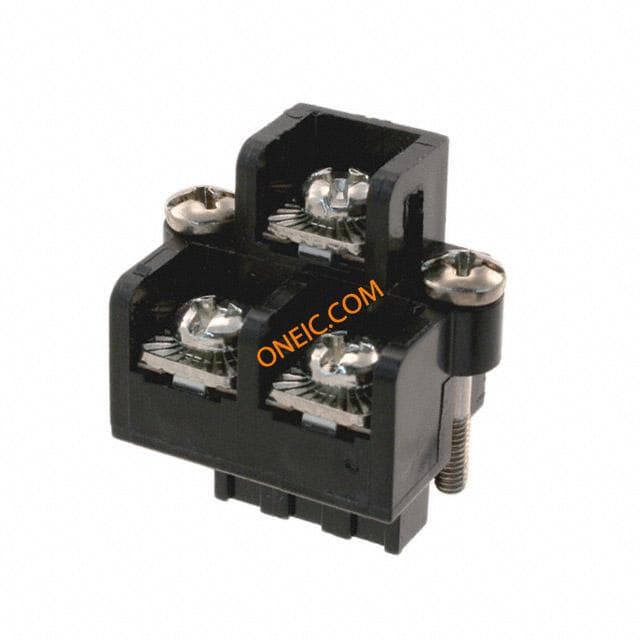

FXPT03200E
