点击放大查看

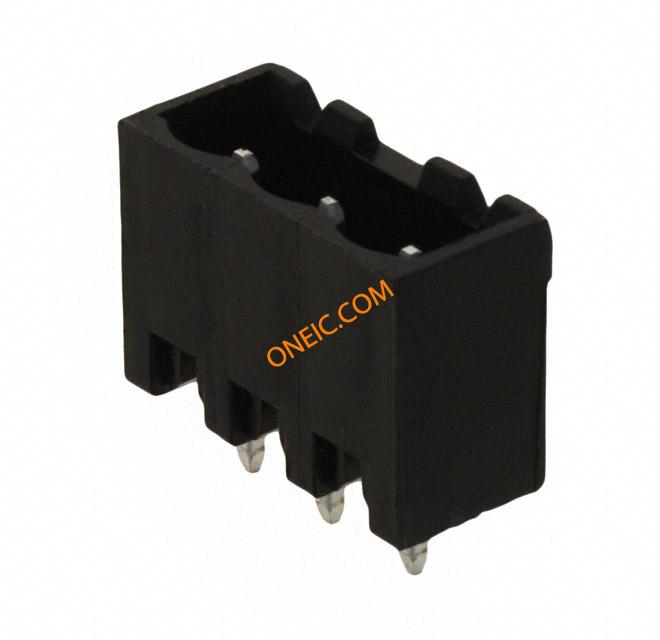

ELFH03250
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 3POS CLOSED TERM BLOCK HDR 3POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 3 Way 1 Row Vertical PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 3; 5.08 mm; Vert.; Black; 15 A; 300 V |
| 分类 |
商业参数
| 其他名称 | APC1243 | 零件号别名 | 308-0187 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
| 绝缘电阻 | 100000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 长度 | 1 in | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | 180 Deg |
| 接触镀层 | Tin-Lead | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | SMD/SMT | 排针方向 | Vertical |
| 触点数 | 3 | 位数 | 3 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 3 | ||
文档与媒体
相关型号

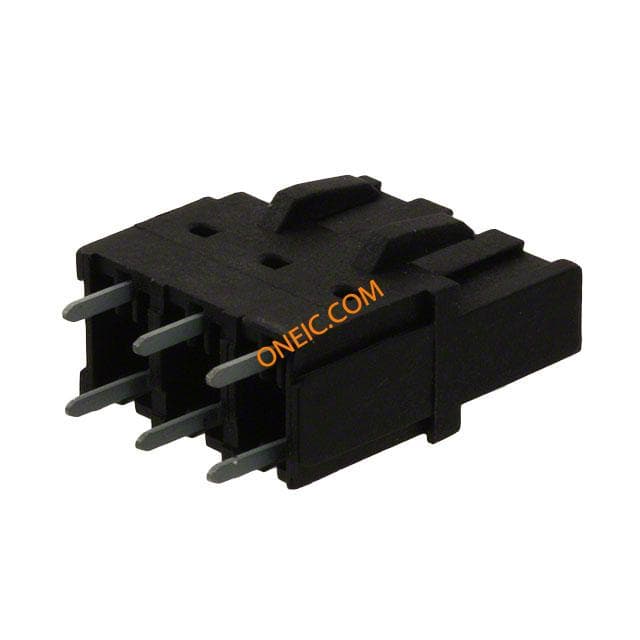

ELFB03280
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR TERM BLOCK HDR 3POS VERT 5.08MM Fixed Terminal Blocks Ver Board Mnt Plug .2 in 3 Pos.
ELFF03220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET Pluggable Terminal Blocks Plug TERM BLOCK PLUG 3POS 5.08MM
ELFT03260
amphenol pcd
Conn Terminal Block F 3 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM
SCFF03210
amphenol pcd
SPRING CLAMP FRONT/FRONT Pluggable Terminal Blocks Spring Clamp Plug .2 in 3 Pos TERM BLOCK PLUG 3POS STR 5.08MM
ELFF03240
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM
ELFK03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM Pluggable Terminal Blocks 3 POS 45 DEG ANGLE
ELFP03210
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 15A Pluggable Terminal Blocks 3P Right Angle Panel Mount Terminal Block TERM BLOCK PLUG 3POS STR 5.08MM
ELFT03250
amphenol pcd
Conn Terminal Block F 3 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 3POS 5.08MM Conn Terminal Blocks F 3 POS 10.16mm Screw ST Cable Mount 15A
ELFF03230
amphenol pcd
Conn Terminal Block F 3 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 3 POS FRONT ENTRY TERM BLOCK PLUG 3POS 5.08MM Plug Top Entry,5.08mm,3way

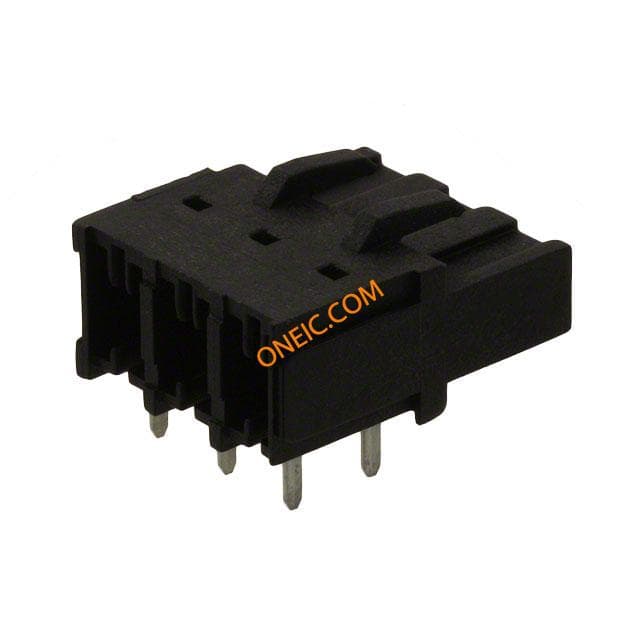

ELFB03230
