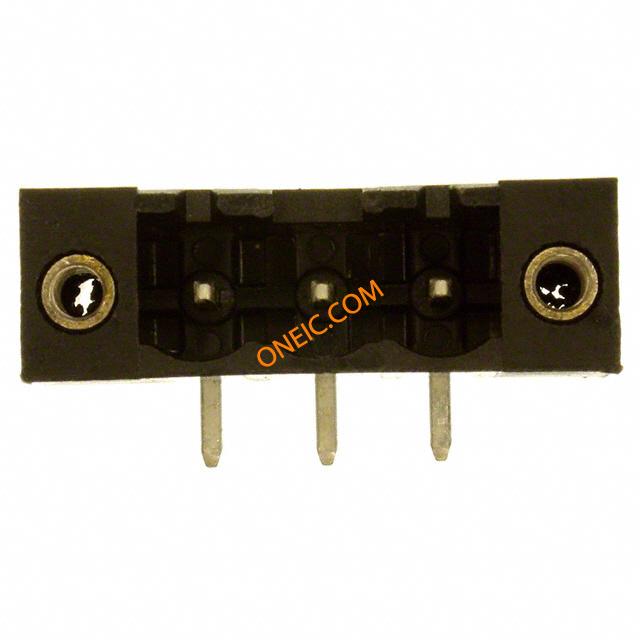

ELFH03210E
| 制造商 | |
| 描述 | Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 3POS EARED Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 3; 5.08 mm; Horiz.; Black; 15 A; 300 V; w/ Locking Ears |
| 分类 |
商业参数
| 产品 | Headers | 其他名称 | APC1269 |
| 零件号别名 | 308-0197 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
| 最小输入电压 | 300V | ||
机械参数
| 颜色 | Black | 深度 | 12.06 |
| 间距 | 0.200" (5.08mm) | 高度 | 8.1 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 接触镀层 | Tin-Lead | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate |
| 总长度 | 25.4 | 端接样式 | Through Hole |
| 排针方向 | 90°, Right Angle | 触点数 | 3 |
| 位数 | 3 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 产品特性 | Flange |
| 层数 | 1 | 每层位数 | 3 |
文档与媒体
相关型号
ELFF03220
amphenol pcd
