ELFF04240
| 制造商 | |
| 描述 | Conn Terminal Block F 4 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 4POS 5.08MM Pluggable Terminal Blocks 4 POS BOTTOM ENTRY |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 抗辐射加固 | No |
电气参数
| 电流 | 15A | 电压 | 300V |
| 供电电压 | 300V | 最大额定电流 | 15 A |
| 最小供电电压 | 300V | ||
机械参数
| 颜色 | Black | 深度 | 30.93 mm |
| 间距 | 5.08 mm | 高度 | 14.37 mm |
| 包装方式 | Tray | 导线线规 | 14-26 AWG |
| 端接方式 | Screw | 外壳颜色 | Black |
| 安装类型 | Cable Mount | 接触镀层 | Tin |
| 安装样式 | Cable | 排数 | 1 |
| 插头进线方向 | 270° | 触头材料 | Copper Alloy |
| 壳体材料 | Polyphenylene Oxide | 总长度 | 20.32 mm |
| 电缆端接方式 | 270° | 触点数 | 4 |
| 位数 | 4 | 接线端子类型 | Plug, Female Sockets |
| 每层极数 | 4 | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 系列 | ELFF | 产品特性 | Retention Latches (Non-Wire Side) |
| 主要用途 | Retention Latches (Non-Wire Side) | 层数 | 1 |
| 每层位数 | 4 | 输出配置 | Free Hanging (In-Line) |
文档与媒体
相关型号
ELFH04220
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks 4P R/A Header .200 Open Ends TERM BLOCK HDR 4POS R/A 5.08MM
ELFD08260
amphenol pcd
Conn Stackable Header HDR 8 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 8POS VERT 5.08MM
ELFH04250
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 4 Way 1 Row Vertical PCB Header, Solder Termination, 15A Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 4POS CLOSED Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole Conn; Term Blk; PCB; 4; 5.08 mm; Vert.; Black; 15 A; 300 V
ELFD08220
amphenol pcd
Conn Stackable Header HDR 8 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 8POS R/A 5.08MM
ELFH04260
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM
ELFA08210
amphenol pcd
RIGHT ANGLE HORIZONTAL HEADER TERM BLOCK HDR 8POS R/A 5.08MM
ELFH04230
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM
ELFH04290
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 4POS VERT 5.08MM
ELFH04240
amphenol pcd
Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 4POS R/A 5.08MM

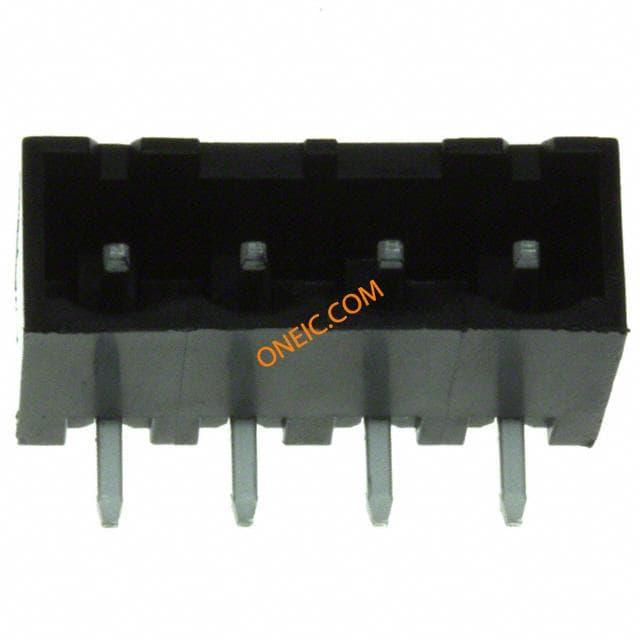

ELFH04210
