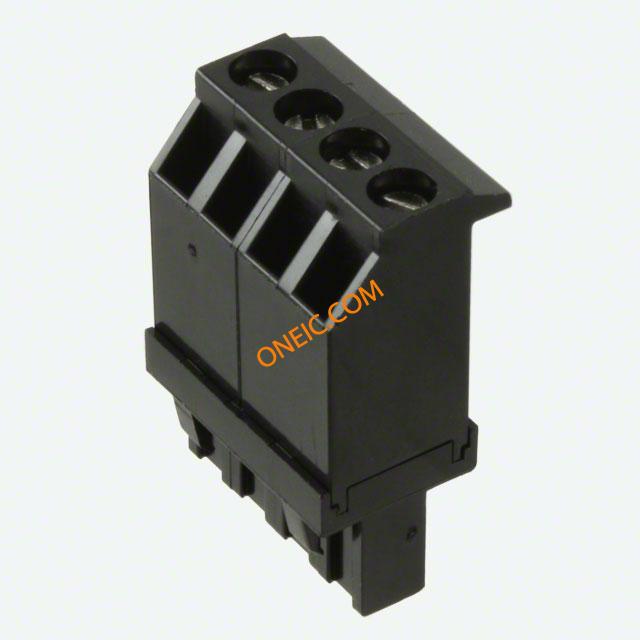

ELFF04230
| 制造商 | |
| 描述 | Conn Terminal Block F 4 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks Plug Top Entry 4 pos .2in TERM BLOCK PLUG 4POS 5.08MM Plug Top Entry,5.08mm,4way |
| 分类 |
商业参数
| 产品 | Pluggable Terminal Blocks | 其他名称 | APC1176 |
| 产品类别 | Pluggable Terminal Blocks | 标准包装数量 | Bulk |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
| 最小输入电压 | 300V | ||
机械参数
| 颜色 | Black | 深度 | 30.93 |
| 间距 | 5.08 mm | 高度 | 14.37 |
| 材料（通用） | PPO | 包装方式 | Bulk |
| 导线线规 | 14-26 AWG | 端接方式 | Screw |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 接触镀层 | Tin | 排数 | 1 |
| 插头进线方向 | 90° | 触头材料 | Copper Alloy |
| 壳体材料 | Polyphenylene Oxide | 总长度 | 20.32 |
| 触点数 | 4 | 位数 | 4 |
| 接线端子类型 | Plug, Female Sockets | ||
产品信息
| 类型 | Terminal Block | 连接器性别 | F |
| 产品特性 | Retention Latches (Wire Side) | 层数 | 1 |
| 每层位数 | 4 | ||
