点击放大查看

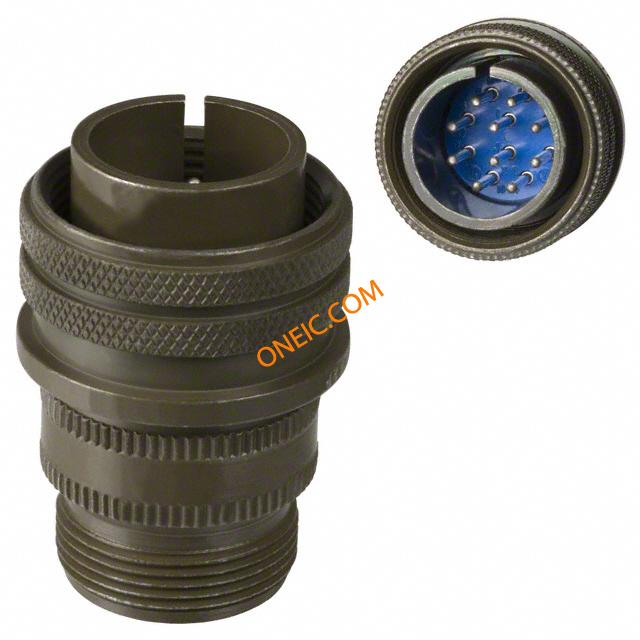

97-3106A-18-1P(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 10P Strt Pin Plug Sz 18 Solder Blk Zn CONN PLUG 10POS W/PINS connector;metal circ;str plug;size 18;10 #16 solder pin contact;black finish connector, metal circ, str plug, size 18, 10 #16 solder pin contact, black finish |
| 分类 |
商业参数
| 其他名称 | 973106A181P946 | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL Recognized/CSA | ||
电气参数
| 额定电压 | 700 V, 250 V | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 22-16 |
| 方向 | N (Normal) | 外壳样式 | In-Line |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Black Zinc Alloy |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Free Hanging |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 18-1 |
| 壳体材料 | Aluminum Alloy | 主要材料 | 5015 Commercial |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 触点数 | 10 | 介电材料 | Diallyl-Phthalate |
| 位数 | 10 | 外壳尺寸-插件 | 18-1 |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 4#16, 6#16 |
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
