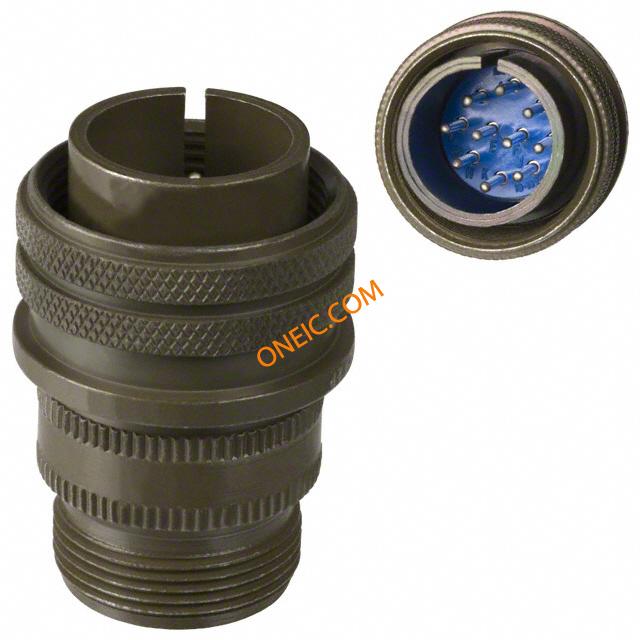

97-3106A-18-19P(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 10P Strt Pin Plug Sz 18 Solder Blk Zn CONN PLUG 10POS W/PINS connector;metal circ;str plug;size 18;10 #16 solder pin contact;black finish connector, metal circ, str plug, size 18, 10 #16 solder pin contact, black finish |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL Recognized/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13 A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 18 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Straight | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 18-1 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 10 | 介电材料 | Diallyl-Phthalate |
| 位数 | 10 | 外壳尺寸-插件 | 18-19 |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 10#16 |
产品信息
| 类型 | Cable Plug | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Plugs |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-10-6
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;step down;conn size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP CIRCULAR CABLE CLAMP, SIZE 18 , DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, step down, conn size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线
97-3057-10
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Olive Drab/Green Chromate CONN CABLE CLAMP SIZE 18 connector accessory;an3057 cable clamp;connector size 18;olive drab finish Circular MIL Spec Strain Reliefs & Adapters REAR CLAMP 18 CIRCULAR CABLE CLAMP, SIZE 18 DIECAST CIRCULAR CABLE CLAMP, SIZE 18 ZINC ALLOY connector accessory, an3057 cable clamp, connector size 18, olive drab finish Amphenol 97 系列 尺寸18 电缆夹, 使用于带护套电缆，带管道保护的电线
.jpg&w=3840&q=75)
97-60-18P(621)
amphenol

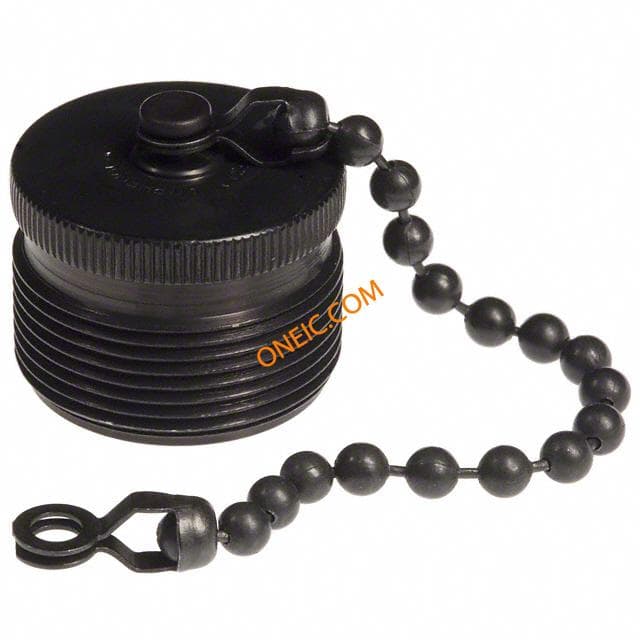

Connector Accessories Metal Protection Cap Bead Chain For Plug Black Zinc Alloy CONN CAP FOR SIZE 18 PLUG connector accessory;metal prot cap w/bead chain;for size 18 plugs;black zinc Circular MIL Spec Tools, Hardware & Accessories PLUG CAP 18 BLACK ZINK COBALT connector accessory, metal prot cap w/bead chain, for size 18 plugs, black zinc
