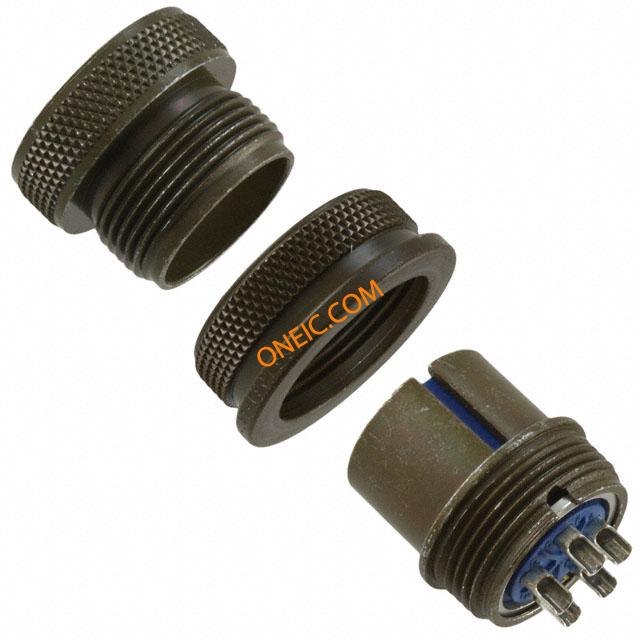

97-3106A-16S-8S(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 5P Strt Socket Plug Sz 16S Solder Blk Zn CONN PLUG 5POS W/SOCKETS connector;metal circ;str plug;size 16s;5 #16 solder socket contact;black finish CIRCULAR CONNECTOR, PLUG, 16S-8, CABLE connector, metal circ, str plug, size 16s, 5 #16 solder socket contact, black finish |
| 分类 |
商业参数
| 其他名称 | 973106A16S8S946 | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构标志 | UL Recognized/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13 A |
机械参数
| 重量 | 0.001 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 16 |
| 导线线规 | 16 | 方向 | N (Normal) |
| 外壳样式 | Potting | 端接方式 | Solder Cup |
| 触头类型 | Socket | 安装类型 | Straight |
| 外壳镀层 | Olive Drab Chromate over Cadmium | 行程角度 | Straight |
| 连接器类型 | Plug, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Wire | 封装形式 | Metal |
| 外壳材料（壳体） | Aluminum Alloy | 连接器用途 | Threaded |
| 插入角度 | 16S-8 | 本体材料 | :Aluminium |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 5 | 接触件端接 | :Solder |
| 介电材料 | Diallyl-Phthalate | 位数 | 5 |
| 外壳尺寸-插件 | 16S-8 | 外壳材料及表面处理 | Aluminum, Zinc Plated, Black |

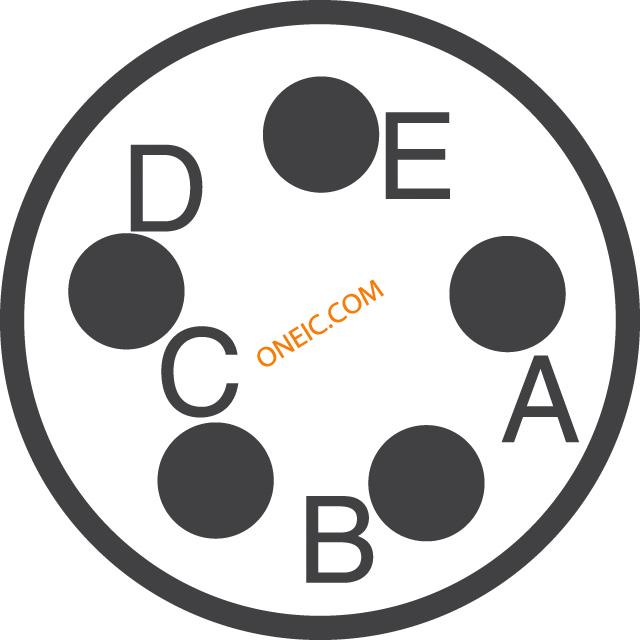

| 典型触点布局 | 5#16 | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Cable Plug | 类别 | A |
| 连接器性别 | :Plug | 系列 | 97 |
| 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization | 制造商全称 | 97 Series |
| 产品子类型 | Plugs | 应用细节 | Commercial |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3102A-16S-8P(946)
Amphenol Industrial
Circular MIL Spec Connector 5P Sz 16S Box Mount Pin Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 5POS W/PINS connector;metal circ;box recept;size 16s;5 #16 solder pin contact;black finish connector, metal circ, box recept, size 16s, 5 #16 solder pin contact, black finish
97-3057-1008(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 16, 16S connector accessory;ms3057 cable clamp for connector size 16;16s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Sz 16, 16S Blk Zinc CABLE CLAMP, SIZE 16, 16S CABLE CLAMP, 97 MIL-C-5015 CONNECTOR connector accessory, ms3057 cable clamp for connector size 16, 16s, black zinc
97-3055-16-6
amphenol

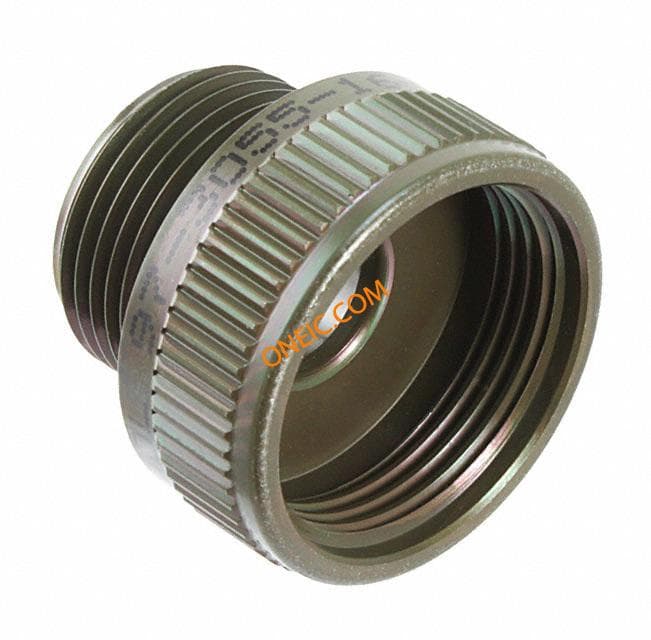

Connector Accessories Adapter Used As Reducing Bushing Circular MIL Spec Strain Reliefs & Adapters Bushing Adapter Shell Size 16, 16S CIRC REDUCING BUSHING SZ 16, 16S connector accessory;reducing/extending bushing;conn size 16s;16;conduit 3/8 inch connector accessory, reducing/extending bushing, conn size 16s, 16, conduit 3/8 inch
