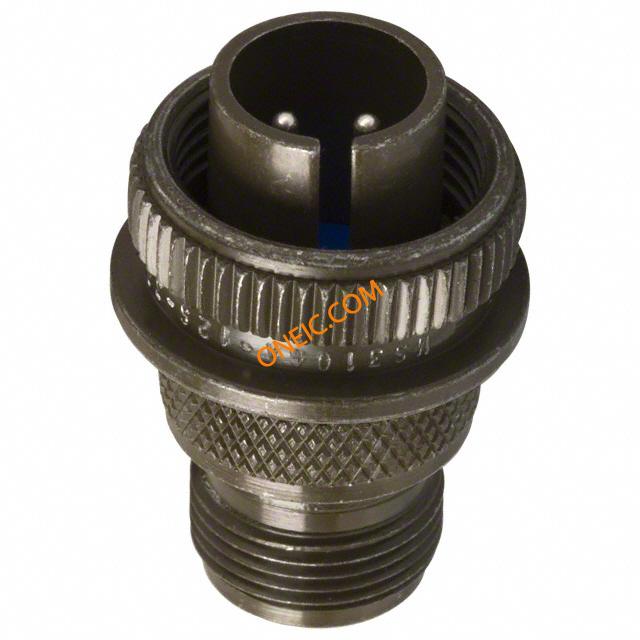

97-3106A-12S-3P(946)
| 制造商 | Amphenol Corporation |
| 描述 | Circular MIL Spec Connector 2P Straight Pin Plug Sz 12S Solder Blk Zn CONN PLUG 2POS W/PINS CONNECTOR, CIRCULAR, 2WAY |
| 分类 |
商业参数
| 其他名称 | 973106A12S3P946 | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85366910 | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 重量 | 0.0136 | 包装方式 | Bulk |
| 外壳尺寸 | 12 | 导线线规 | 22-16 |
| 方向 | N (Normal) | 外壳样式 | In-Line |
| 端接方式 | Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Black Zinc Alloy | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Aluminum Alloy |

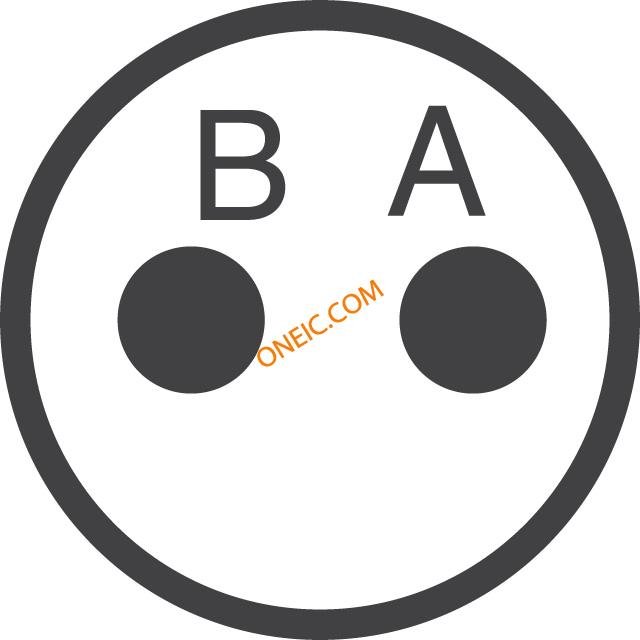

| 插入角度 | 12S-3 | 本体材料 | :Aluminium |
| 触头材料 | :Copper Alloy | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 触点数 | 2 |
| 接触件端接 | :Solder | 位数 | 2 |
| 外壳尺寸-插件 | 12S-3 | 外壳材料及表面处理 | Aluminum, Zinc Plated, Black |
| 第一连接器安装类型 | :Cable | ||
产品信息
| 连接器性别 | :Plug | 系列 | 97 |
| 产品子类型 | Plugs | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
