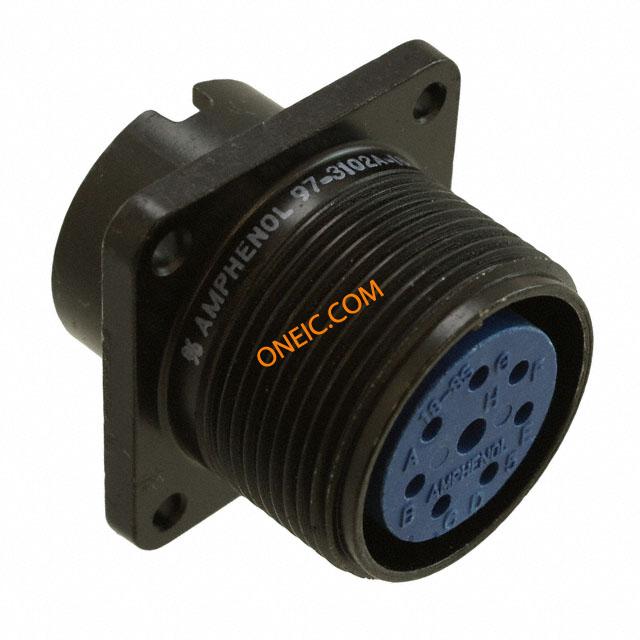

97-3102A-18-8S(946)
| 制造商 | |
| 描述 | Circular MIL Spec Connector 8P Sz 18 Box Mount Socket Recept Solder MIL-DTL-5015 (MS3100-MS3108) Circular Connectors CONN RECEPT BOX MNT 8POS W/SOCK connector;metal circ;box recept;size 18;1#12;7#16 solder socket cont;black fin CIRCULAR, RECEPTACLE, 18-8, BOX connector, metal circ, box recept, size 18, 1#12, 7#16 solder socket cont, black fin |
| 分类 |
商业参数
| 其他名称 | 973102A188S946 | 产品类别 | Circular MIL Spec Connector |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 海关税号 | 85369010 | 认证机构标志 | UL Recognized/CSA |
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A, 23A |
机械参数
| 重量 | 0.001 | 包装方式 | Bulk |
| 出线方向 | Solid | 外壳尺寸 | 18 |
| 导线线规 | 12, 16 | 方向 | N (Normal) |
| 外壳样式 | box mount receptable | 端接方式 | Solder Cup |
| 触头类型 | socket contacts | 安装类型 | Panel Mount, Flange |
| 外壳镀层 | Black Zinc Alloy | 行程角度 | Straight |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | special variation code |
| 紧固类型 | Threaded | 外壳涂层 | Olive Drab Cadmium |
| 安装样式 | Panel | 封装形式 | Metal |
| 外壳材料（壳体） | solid backshell | 连接器用途 | Threaded |
| 插入角度 | 18-8 | 本体材料 | :Aluminium |
| 触头材料 | :- | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Socket (Female) | 配接方向 | Threaded |
| 触点数 | 8 | 接触件端接 | :Solder |
| 介电材料 | Diallyl-Phthalate | 位数 | 8 |
| 外壳尺寸-插件 | 18-8 | 安装孔直径 | 0.12 " |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 1#12, 7#16 |
| 第一连接器安装类型 | :Panel | ||
产品信息
| 类型 | Panel Socket | 类别 | A |
| 连接器性别 | :Receptacle | 系列 | 97 |
| 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization | 制造商全称 | 97 Series |
| 产品子类型 | Receptacles | 插入配置 | 18-8 |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3108B-18-8P(946)
Amphenol Industrial
Circular MIL Spec Connector 8P Size 18 Solder R/A Pin Plug Blk Zn CONN PLUG RT ANG 8POS W/PINS connector;metal cir;rt angle plug;size 18;1#12;7#16 solder pin cont;black finish connector, metal cir, rt angle plug, size 18, 1#12, 7#16 solder pin cont, black finish
.jpg&w=3840&q=75)
97-60-18(621)
Amphenol Industrial

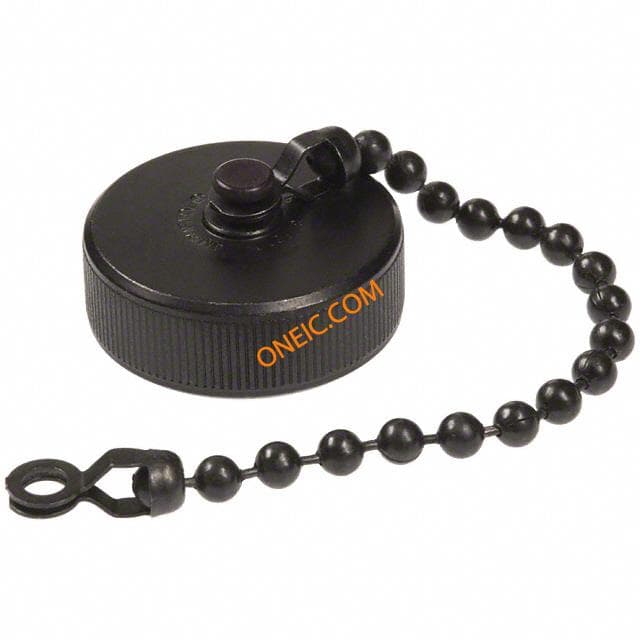

Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 18 BLACK ZINK COBALT CONN CAP FOR SIZE 18 RECEPT connector accessory;metal prot cap w/bead chain;for size 18 recept;black zinc Connector Accessories Metal Protection Cap Bead Chain For Receptacle Black Zinc Alloy connector accessory, metal prot cap w/bead chain, for size 18 recept, black zinc

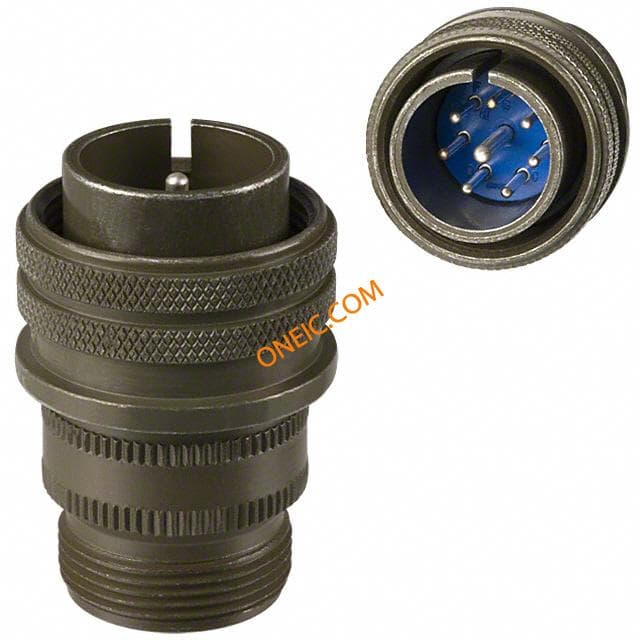

97-3106A-18-8P(946)
