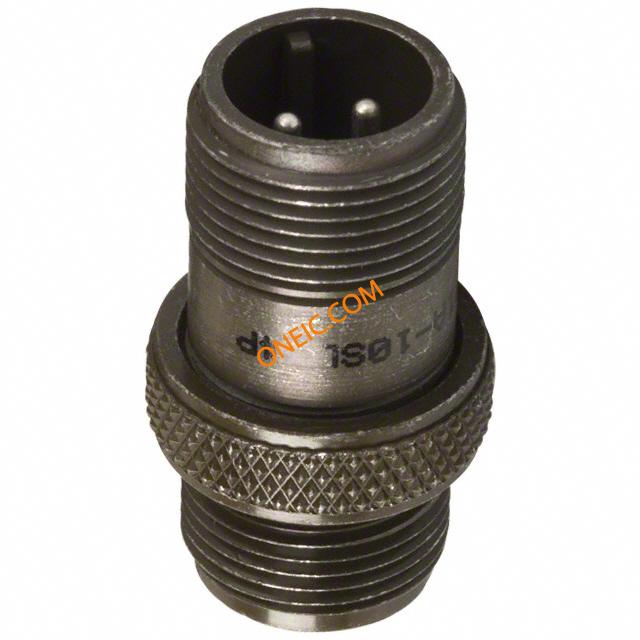

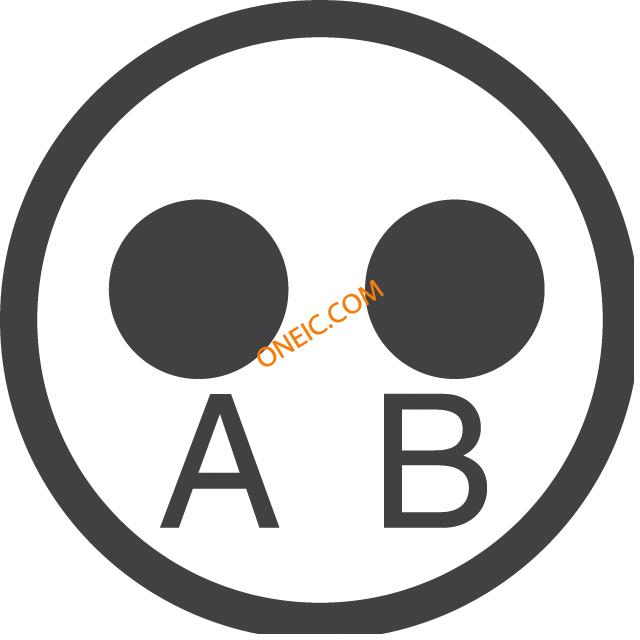

97-3101A-10SL-4P(946)
| 制造商 | Amphenol Corporation |
| 描述 | Circular MIL Spec Connector 2P Sz 10SL Pin Cable Recpt Solder Blk Zn CONN RECEPT CBL MNT 2POS W/PINS connector, metal circ, cable recept, size 10sl, 2#16 solder pin cont, black zinc fin |
| 分类 |
商业参数
| 产品类别 | Circular MIL Spec Connector | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
| 认证机构标志 | UL Recognized/CSA | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 13A |
机械参数
| 包装方式 | Bulk | 出线方向 | Solid |
| 外壳尺寸 | 10 | 导线线规 | 16 |
| 方向 | N (Normal) | 外壳样式 | Potting |
| 端接方式 | Solder Cup | 触头类型 | Pin |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Olive Drab Chromate over Cadmium |
| 行程角度 | Straight | 连接器类型 | Receptacle, Male Pins |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 外壳涂层 | Olive Drab Cadmium | 安装样式 | Wire |
| 封装形式 | Metal | 外壳材料（壳体） | Aluminum Alloy |
| 连接器用途 | Threaded | 插入角度 | 10SL-4 |
| 触头材料 | Copper Alloy | 壳体材料 | Aluminum Alloy |
| 主要材料 | 5015 Commercial | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 配接方向 | Threaded |
| 触点数 | 2 | 介电材料 | Diallyl-Phthalate |
| 位数 | 2 | 外壳尺寸-插件 | 10SL-4 |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | 典型触点布局 | 2#16 |
产品信息
| 类型 | Cable Socket | 类别 | A |
| 系列 | 97 | 产品特性 | Environmental Resistant, Single Key/Keyway Shell Polarization |
| 制造商全称 | 97 Series | 产品子类型 | Receptacles |
| 应用细节 | Commercial | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
文档与媒体
相关型号
97-3057-1004(621)
amphenol
Connector Accessories Cable Clamp Zinc Die Cast Alloy Black Zinc Alloy CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp for shell sizes 10sl;12;12s;black zinc Circular MIL Spec Strain Reliefs & Adapters Cable Clamp MS3057A Sz 10SL, 12S Blk Zn CABLE CLAMP, SIZE 10SL, 12S connector accessory, ms3057a cable clampfor shell sizes 10sl, 12, 12s, black zinc
97-3057-1004-1(621)
amphenol
Connector Accessories Clamp/Bushing Zinc Die Cast Alloy/Rubber Black Zinc Alloy Miscellaneous Connector Accessories CONN CABLE CLAMP SIZE 10SL, 12S connector accessory;ms3057a cable clamp w/rubber bushing;size 10sl;12;12s;black Circular MIL Spec Strain Reliefs & Adapters Clamp with Bushing Size 10SL, 12S CABLE GLAND, SIZE 10SL, 12S connector accessory, ms3057a cable clampw/rubber bushing, size 10sl, 12, 12s, black

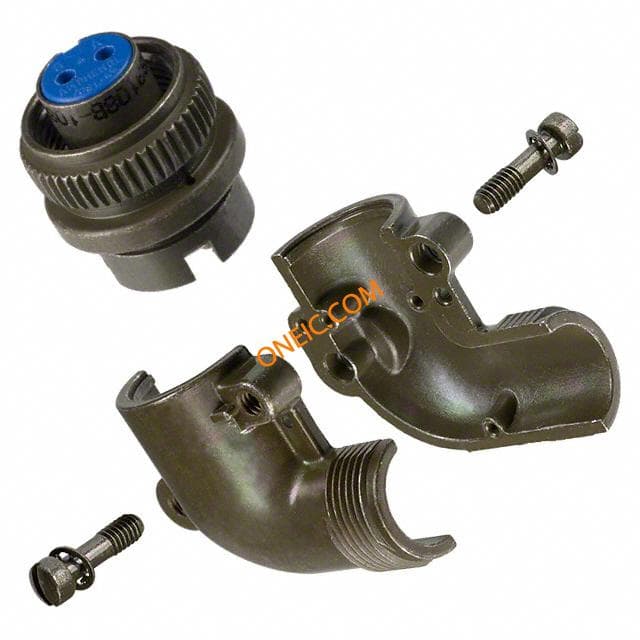

97-3108B-10SL-4S(946)
