点击放大查看

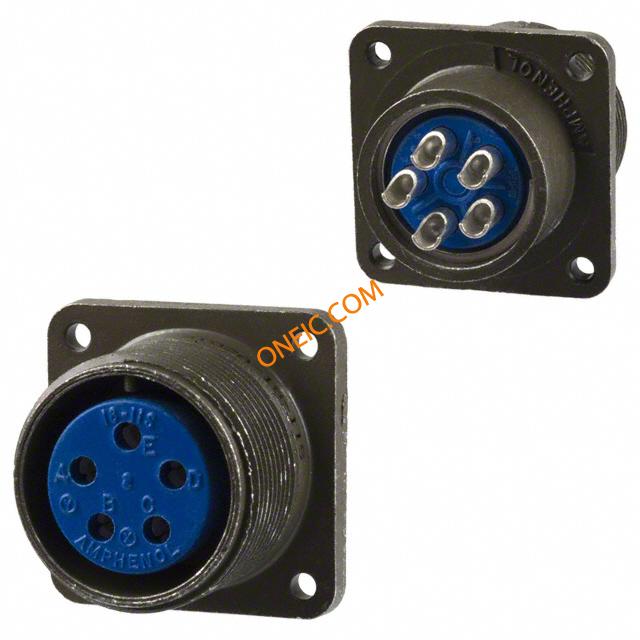

97-3102A18-11S(946)
| 制造商 | |
| 描述 | CONN RECEPT BOX MNT 5POS W/SOCK MIL-DTL-5015 (MS3100-MS3108) Circular Connectors |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 500VAC, 700VDC | 最大额定电流 | 23A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 18 |
| 方向 | N (Normal) | 外壳样式 | box mount receptable |
| 端接方式 | Solder Cup | 重量（g） | 50.80000 |
| 触头类型 | socket contacts | 安装类型 | Panel Mount, Flange |
| 连接器类型 | Amphenol 97 Series - Standard Cylindrical Connector - solder type | 接触镀层 | special variation code |
| 紧固类型 | Threaded | 外壳材料（壳体） | solid backshell |
| 位数 | 5 | 外壳尺寸-插件 | 18-11 |
| 外壳材料及表面处理 | Aluminum, Zinc Plated, Black | ||
产品信息
| 插入配置 | 18-11 | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
