点击放大查看

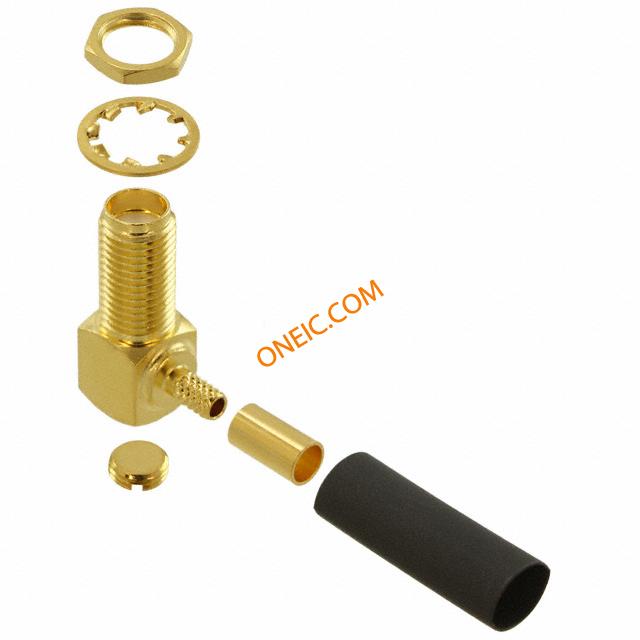

132245
| 制造商 | |
| 描述 | RF Connectors SMA R/A BH CRIMP JK LMR 100/RG 316/U CONN SMA JACK R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors SMA R/A BH CRIMP JK LMR 100/RG 316/U RF/COAXIAL, SMA BHD JACK R/A 50 OHM CRIMP SMA, SMA R/A BLKHD JCK 174, 316/U |
| 分类 |
商业参数
| 产品 | Connectors | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant By Exemption | 海关税号 | 85366910 |
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 375V |
| 耦合系数 | Threaded | 最大频率 | 12.4GHz |
机械参数
| 重量 | 0 | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A | 本体表面处理 | Gold |
| 电缆组 | RG-174, 316, LMR-100 | 方向 | Right Angle |
| 基体材料 | Brass | 外壳颜色 | Gold |
| 安装类型 | Free Hanging (In-Line), Right Angle | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 连接器样式 | SMA | 触头材料 | Beryllium Copper |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Beryllium Copper |
| 供应商器件封装 | Right Angle | ||
产品信息
| 连接器性别 | Jack | 产品特性 | Heat Shrink Tubing |
| 极性 | Standard | 射频系列/标准 | SMA |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | -65°C ~ 165°C | ||
