点击放大查看

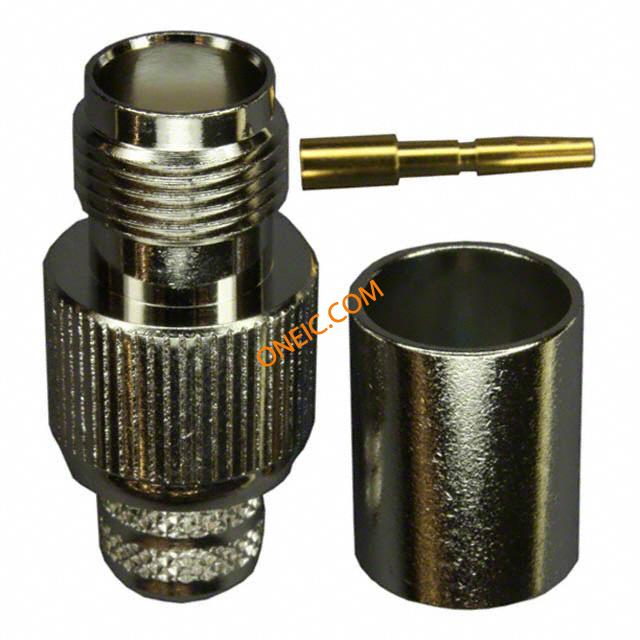

122482
| 制造商 | |
| 描述 | Conn TNC F 0Hz to 11GHz 50Ohm Crimp ST Cable Mount Gold CONN TNC JACK STR 50 OHM CRIMP connector;rf coaxial;tnc straight crimp jack;for rg8;213;393;50 ohm RF Connectors / Coaxial Connectors TNC JACK 8 213 connector, rf coaxial, tnc straight crimpjack, for rg8, 213, 393, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1109 |
| 零件号别名 | 319-0465 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 重量 | 0.673027 oz | 包装方式 | Bulk |
| 电缆类型 | RG 8/213/393 | 本体表面处理 | Nickel |
| 电缆组 | RG-8, 213, 393 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 连接器样式 | TNC |
| 连接器用途 | Threaded | 触头材料 | Phosphor Bronze |
| 壳体材料 | Brass | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Phosphor Bronze |
产品信息
| 类型 | TNC | 连接器性别 | F |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 制造商全称 | TNC Series | 连接类型 | Coaxial Cable |
| 射频系列/标准 | 122482 | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 工作温度 | - 65 C to + 165 C |
文档与媒体
相关型号
47-20029
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies CRIMP DIE SET 8/58 N SERIES TOOL DIE SET .429/.213/.100 CRIMP DIE SET 8/58 N SERIES
47-10230
amphenol connex
Crimp Tool With Die Punches & Dies CRIMP TOOL RG58/8 N SERIES TOOL CRIMP W/DIES .429/.213/.100 CRIMP TOOL RG58/8 N SERIES

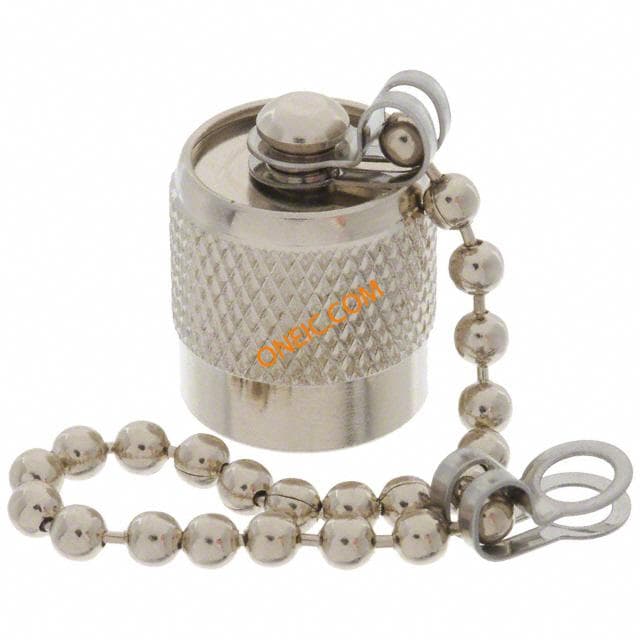

202101
