122454
| 制造商 | |

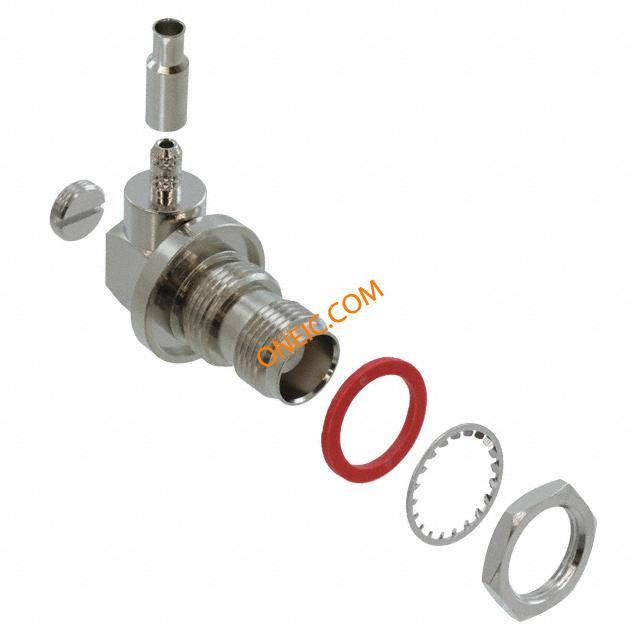

| 描述 | RF Connectors TNC R/A BULKHEAD JACK 316/U Conn TNC F 0Hz to 11GHz 50Ohm Crimp RA Panel Mount Gold CONN TNC JACK R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors TNC R/A BULKHEAD JACK 316/U |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1957 |
| 产品类别 | RF Connectors / Coaxial Connectors | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11G | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 高度 | 26.25 | 重量 | 1 oz |
| 直径 | 18.5 | 包装方式 | Bulk |
| 本体表面处理 | Nickel | 电缆组 | RG-174, 316, LMR-100 |
| 方向 | Right Angle | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Panel Mount | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 壳体镀层 | Nickel | 连接器样式 | TNC |
| 触头材料 | Phosphor Bronze | 总长度 | 31 |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Solder | 介电材料 | Polytetrafluoroethylene (PTFE) |
| 绝缘材料 - 类型 | Polytetrafluoroethylene | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | ||
产品信息
| 类型 | TNC | 连接器性别 | F |
| 极性 | Standard | 连接类型 | Coaxial Cable |
| 射频系列/标准 | TNC | ||
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | - 65 C to + 165 C | ||
