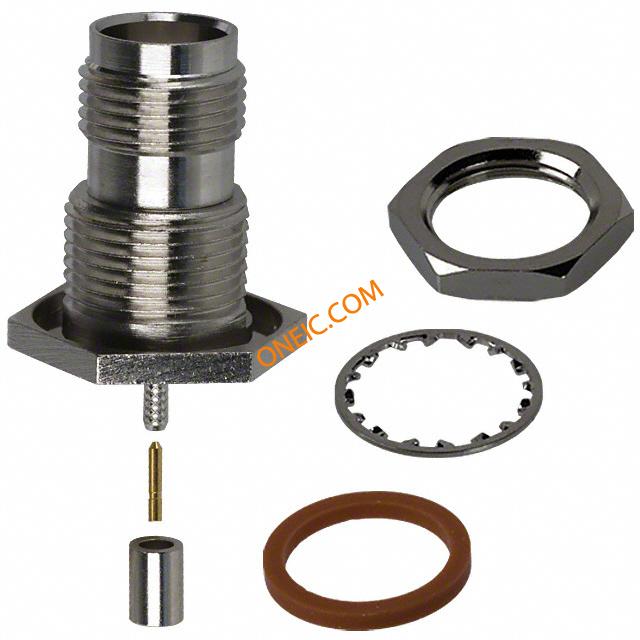

| 描述 | Conn TNC RCP 0Hz to 11GHz 50Ohm Crimp ST Panel Mount Gold CONN TNC JACK STR 50 OHM CRIMP RF Connectors / Coaxial Connectors TNC BULKHEAD JACK 178/196 3.5 PANEL connector, rf coaxial, tnc bulkhead crimpjack, for rg178, 196 cable, 50 ohm |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1100 |
| 零件号别名 | 319-0085 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 频率 | 0 to 11 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Threaded |
| 最大频率 | 11GHz | ||
机械参数
| 深度 | 17.5 | 高度 | 17.5 |
| 重量 | 0.569322 oz | 包装方式 | Bulk |
| 电缆类型 | RG-178, RG-196 | 本体表面处理 | Nickel |
| 电缆组 | RG-178, 196 | 方向 | Straight |
| 端接方式 | Crimp | 基体材料 | Brass |
| 外壳颜色 | Silver | 安装类型 | Panel Mount |
| 行程角度 | Straight | 连接器类型 | Jack, Female Socket |
| 接触镀层 | Gold | 紧固类型 | Threaded |
| 外壳涂层 | Nickel | 壳体镀层 | Nickel |
| 连接器样式 | TNC | 连接器用途 | Threaded |
| 触头材料 | Brass | 壳体材料 | Brass |
| 总长度 | 27.2 | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Brass | ||
产品信息
| 类型 | TNC | 连接器性别 | RCP |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 制造商全称 | TNC Series | 连接类型 | Coaxial Cable |
| 射频系列/标准 | TNC | 应用细节 | Commercial |
环境参数
| 插拔次数 | 500 | 防护等级 | Weatherproof |
| 工作温度 | - 40 C to + 155 C | ||
