122138
| 制造商 | |

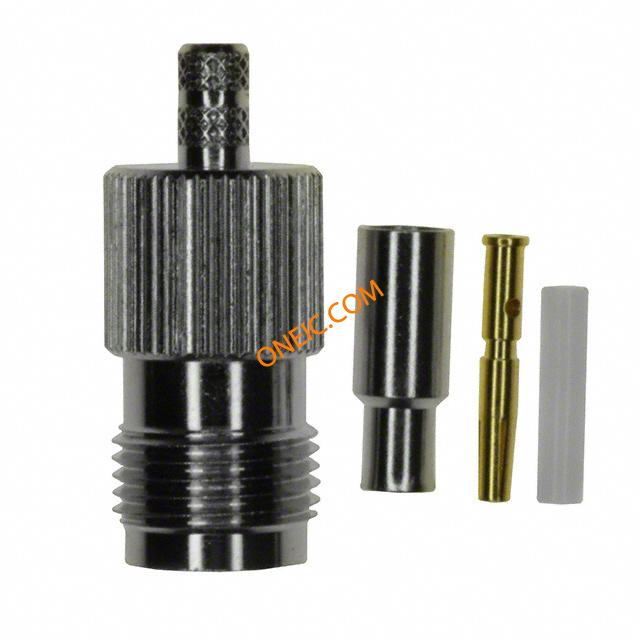

| 描述 | Conn TNC F 50Ohm Crimp ST Cable Mount Gold CONN TNC JACK STR 50 OHM CRIMP connector;rf coaxial;tnc straight crimp jack;for rg174;316;Lmr100;50 ohm RF Connectors / Coaxial Connectors TNC STRAIGHT JACK 316/174 NICKEL RF/COAXIAL, TNC JACK, STR, 50 OHM, CRIMP connector, rf coaxial, tnc straight crimpjack, for rg174, 316, Lmr100, 50 ohm 122138 TNC Female Crimp Connector, Cable Group B, Amphenol |
| 分类 |
商业参数
| 产品 | Connectors | 其他名称 | ACX1417 |
| 零件号别名 | 319-0466 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | ||
电气参数
| 阻抗 | 50 Ohm | 额定电压 | 500V |
| 耦合系数 | Threaded | 最大频率 | 11GHz |
机械参数
| 重量 | 0.349212 oz | 包装方式 | Bulk |
| 电缆类型 | RG-174, RG-188A, RG-316, Belden 7805A | 本体表面处理 | Nickel |
| 电缆组 | RG-174, 316, LMR-100 | 方向 | Straight |
| 端接方式 | Crimp | 重量（g） | 14.00000 |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Jack, Female Socket | 接触镀层 | Gold |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 安装样式 | Cable | 壳体镀层 | Nickel |
| 连接器样式 | TNC | 连接器用途 | Threaded |
| 触头材料 | Phosphor Bronze | 壳体材料 | Brass |
| 总长度 | 27.3 mm | 主要材料 | TNC |
| 端接样式 | Cable - Crimp | 屏蔽层端接方式 | Crimp |
| 接触件端接 | Crimp | 介电材料 | Polyoxymethylene (POM) Acetal |
| 绝缘材料 - 类型 | Delrin | 中心触点镀层工艺 | Gold |
| 中心触点材料 | Phosphor Bronze | 供应商器件封装 | Straight |
产品信息
| 类型 | TNC | 连接器性别 | F |
| 系列 | :- | 产品特性 | Captivated Contact |
| 极性 | Standard | 制造商全称 | TNC Series |
| 连接类型 | Coaxial Cable | 射频系列/标准 | TNC |
| 应用细节 | Commercial | ||
