TRACOPOWER

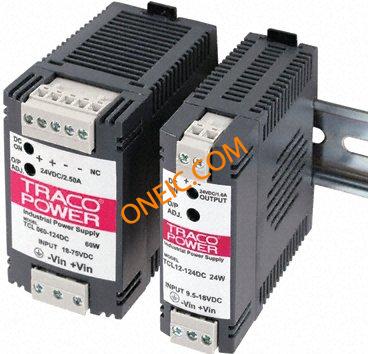

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Depth | 100mm |
| Dimensions | 75 x 45 x 100mm |
| Efficiency | 86% |
| Input Voltage | 18 → 75V dc |
| Length | 75mm |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Maximum Temperature | +70°C |
| Minimum Temperature | -25°C |
| MTBF | 2500000h |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Voltage | 12V dc |
| Power Rating | 24 → 60W |
| Ripple And Noise | 50mV Pk-Pk |
| Type | Switch Mode |
| Weight | 265g |
| Width | 45mm |
| DC / DC Converter Type | :- |
| DC / DC Converter Output Type | :Fixed |
| Input Voltage DC Min | :18V |
| Input Voltage DC Max | :75V |
| No. of Outputs | :1 |
| Output Voltage Nom. | :12V |
| Output Current Max | :5A |
| Output Power Max | :60W |
| DC / DC Converter Mounting | :DIN Rail |
| Approvals / Standards | :- |
| Approval Bodies | :CSA, cUL, EN, IEC, UL |
| External Depth | :100mm |
| External Length / Height | :75mm |
| External Width | :27mm |
| Isolation Voltage | :1.5kV |
| Weight (kg) | 0.265 |
| Tariff No. | 85044090 |
