tdk-lambda

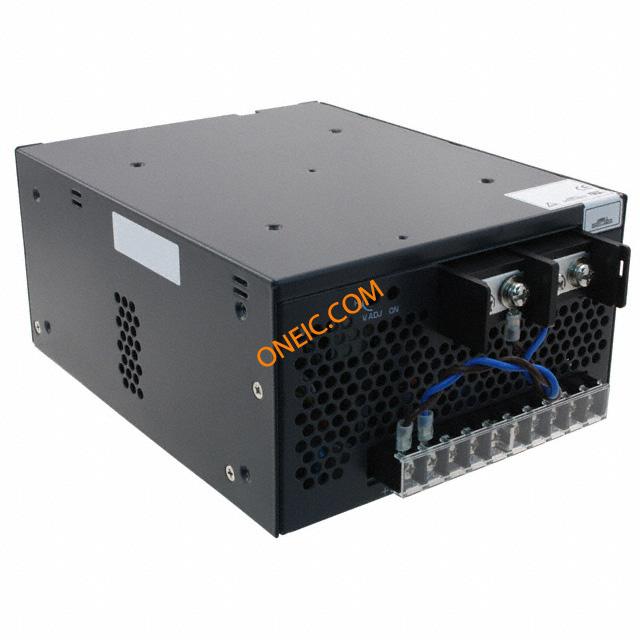

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Input Voltage | 85 to 265 V |
| Output Voltage | 24 V |
| Maximum Output Current | 27 A |
| Number of Outputs | 1 |
| Efficiency | 82(Typ) % |
| Input Frequency | 47 to 63 Hz |
| Standard Package | Bulk |
| Style | Open Frame |
| EU RoHS | Compliant |
| Input Frequency | 47 to 63 |
| Package Height | 91.95 |
| Output Voltage | 24 |
| Efficiency | 82(Typ) |
| Minimum Isolation Voltage | 3000VAC |
| Maximum Output Current | 27 |
| Package Width | 159.77 |
| Mounting | Desktop |
| Package Length | 200.66 |
| Input Voltage | 85 to 265 |
| Mounting Type | Chassis Mount |
| Applications | Commercial |
| Approvals | CE, CSA, DENTORI, EN, UL, VDE |
| Power (Watts) - Max | 648W |
| Voltage - Output | 24V |
| Size / Dimension | 7.90" L x 6.29" W x 3.62" H (200.7mm x 159.8mm x 91.9mm) |
| Power (Watts) | 600W |
| Output - 1 @ Current (Max) | 24 VDC @ 27A |
| Voltage - Input | 85 V ~ 265 VAC |
| Operating Temperature | -10°C ~ 65°C |
| Type | Standard Product |
| Power Supply Type | Switching (Open Frame) |
| rohs | Lead free / RoHS Compliant |
| Product | Switching Supplies |
| Output Current-Channel 1 | 27 A |
| Series | JWS |
| Output Voltage-Channel 1 | 24 V |
| Mounting Style | Chassis |
| RoHS | RoHS Compliant |
| Screening Level | Commercial |
| Rad Hardened | No |
| Operating Temperature Max Deg. C | 60C |
| Operating Temperature Min Deg. C | -10C |
| Output Current (Max) | 27 A |
| Isolation Voltage (Min) | 3000 V |
| Output Power (Max) | 600 W |
| Product Length (mm) | 200.66 mm |
| Output Current | 27 A |
| Product Depth (mm) | 159.77 mm |
| Product Height (mm) | 91.95 mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
