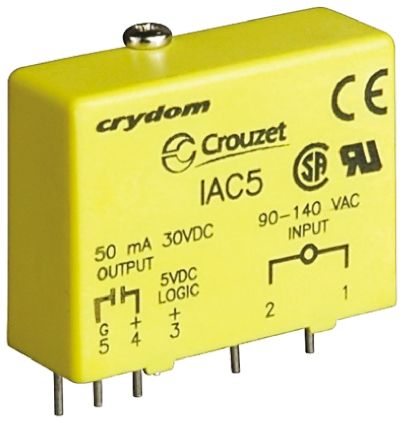

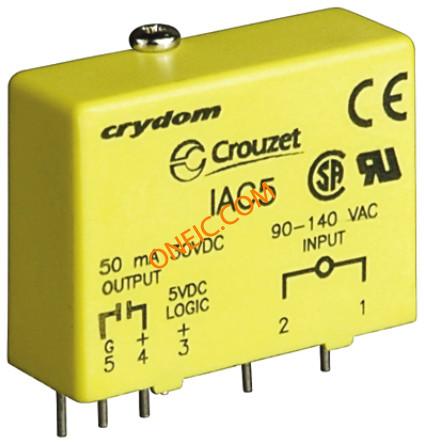

Crydom
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Product Category | I/O Modules |
| RoHS | RoHS Compliant |
| Input Voltage | 90 V to 140 V |
| Input Current | 10 mA |
| Output Voltage | 30 VDC |
| Output Current | 50 mA |
| Isolation | 4000 V |
| Series | Standard |
| Life | NRND: Not recommended for new designs. |
| Maximum Load Voltage | 30VDC |
| Maximum Load Current | 50mA |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 80 |
| Mounting | Through Hole/Plug-In |
| Module Type | Input Module |
| Output Type | DC |
| Terminal Type | PC Pins/Screw Terminal |
| I/O Isolation Voltage | 4000VAC |
| Technology | Solid State |
| Input Type | DC|AC |
| Product Weight | 31.2 |
| Minimum Operating Temperature | -30 |
| Maximum Input Current | 6mA |
| Maximum Input Voltage | 140VDC|140VAC |
| Minimum Input Voltage | 90VDC|90VAC |
| Industry Aliases | IAC5 |
| Subcategory | I/O Module |
| Lead Time | 56 Days |
| Style | Standard |
| Logic Supply Current (Output) | 16mA |
| Color | Yellow |
| Logic Supply Voltage (Output) | 5VDC (3 ~ 6VDC) |
| Standard Package | 25 |
| Current - Input | 6mA |
| Voltage - Input | 90 ~ 140VAC (120VAC Nom) |
| Turn On Time | 20ms |
| Turn Off Time | 20ms |
| Type | AC |
| Other Names | CC1200 |
| Features | Hold Down Screw |
| rohs | Lead free / RoHS Compliant |
| Load Current Rating | 50mA |
| Load Voltage Rating | 30V dc |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Mounting Type | PCB |
| Brand/Series | 0.6In.Series |
| ConnectiontoHost | BoardMount |
| Current,Input | 10mA |
| Current,LeakageOutput | 10uA(Max.) |
| Current,Off-State | 3mA(RMS) |
| Input | 90to140VAC/VDC |
| InputType | Analog |
| Input,Range | 90to140VAC/VDC |
| LogicVoltage,Nominal | 5VDC(Nom.) |
| NumberofChannels | 1 |
| PrimaryType | Control |
| Time,Turn-Off | 30ms(Max.) |
| Time,Turn-On | 20ms(Max.) |
| Voltage,Input | 120VAC/VDC |
| Voltage,Rating | 90to140VAC/VDC |
| SubCategory | Input/Output Modules |
| Load Current | 50 mA |
| Control Voltage | 90-140 VAC/VDC |
| MainCategory | Relays |
| Load Voltage | 30 VDC |
| 输入电压范围 | 90 → 140V交流/直流 |
| 输入电流 | 6mA |
| 负载额定电流 | 50mA |
| 最高工作温度 | +80°C |
| 端子类型 | 通孔 |
| 安装类型 | PCB（印刷电路板）安装 |
| 最低工作温度 | -30°C |
| 工作温度范围 | -30 → +80°C |
| 最小输入电压 | 90V交流/直流 |
| 负载额定电压 | 30V 直流 |
| 最大输入电压 | 140V交流/直流 |
