PANASONIC

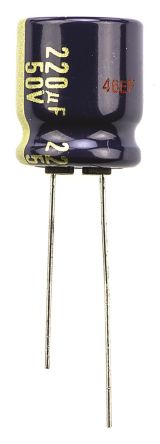

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Unit Pack | 200 |
| MOQ | 20000 |
| Product Range | :PANASONIC - FC Series |
| Capacitance | :220µF |
| Capacitance Tolerance | :± 20% |
| Voltage Rating | :50V |
| Diameter | :12.5mm |
| Height | :15mm |
| Capacitor Terminals | :Radial Leaded |
| Lead Spacing | :5mm |
| Life Time @ Temperature | :5000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| Packaging | :- |
| Weight (kg) | 0.0036 |
| Tariff No. | 85322200 |
| CaseSize | 12.5mmDia.x15mmL |
| Material,Element | AluminumElectrolytic |
| Temperature,Operating,Maximum | 105°C |
| Temperature,Operating,Minimum | –55°C |
| Termination | Radial |
| Tolerance | ±20% |
| Voltage,Rating | 50VDC |
| rohs | RoHS Compliant Part |
| Capacitors features | low impedance |
| Body dimensions | Ø12 x 15mm |
| Nominal life | 5000h |
| Multiplicity | 1 |
| Terminal pitch | 5mm |
| Capacitor type | electrolytic |
| Gross weight | 2.96 g |
| Operating temperature | -55...105°C |
| Capacitor kind | low impedance |
| Operating voltage | 50V |
| Mounting | THT |
| Impedance | 110mΩ |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
