Panasonic

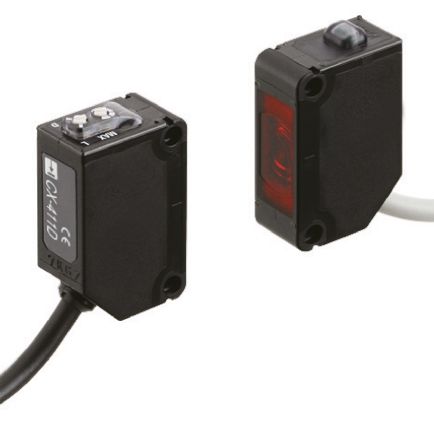

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Detection Range | 10 m |
| Detection Type | Through Beam |
| Electrical Connection | Cable |
| Housing Material | PBT |
| IP Rating | IP67 |
| Light Source | LED |
| Maximum Current | 100 mA |
| Maximum DC Voltage | 24V |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | -25°C |
| Optical Technology | Phototransistor |
| Output Type | PNP |
| Response Time | |
| Sensor Style | Block |
| Dimensions L x W x H | 31 x 11 x 20 mm |
| Sensor type | Through-beam sensor |
| Light type | LED, visible red light |
| Load current | 100 |
| Length | 31 |
| Height | 20 |
| Width | 11 |
| Connection | Cable 2 m |
| Operating temperature | -25...+55 °C |
| Operating voltage | 12...24 VDC |
| Response time | 1 ms |
| Output | PNP |
| Protection rating | IP 67 |
| Switching interval | 0...10 m |
| 检测类型 | 直通光束（发射器和接收器） |
| IP 防护等级 | IP67 |
| 最大电流 | 100 mA |
| 最高工作温度 | +55°C |
| 光源 | LED |
| 光学技术 | 光电晶体管 |
| 传感器样式 | 块状 |
| 外壳材料 | PBT |
| 最低工作温度 | -25°C |
| 检测范围 | 10 m |
| 输出类型 | PNP |
| 最大直流电压 | 24V |
| 电气连接 | 2m 电缆 |
