osram opto semiconductor

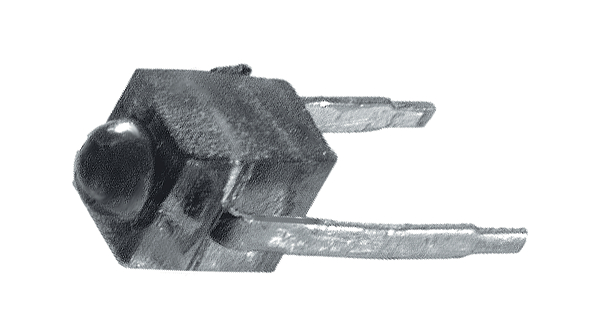

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Type | Chip |
| Phototransistor Type | Phototransistor |
| Maximum Collector Current | 50 mA |
| Peak Wavelength | 850 nm |
| Lens Color | Transparent |
| Lens Shape Type | Domed |
| Viewing Orientation | Top View |
| Half Intensity Angle Degrees | 36 ° |
| Maximum Rise Time | 6000 ns |
| Polarity | NPN |
| Standard Package | Bulk |
| Matchcode | BPX81-3 |
| Unit Pack | 1000 |
| Standard Leadtime | 14 weeks |
| Photo curr.min. | 400µA |
| Op.temp.min. | -40°C |
| Dark current | 25nA |
| Photo curr.max. | 800µA |
| Sensitive Area | 0.17mm² |
| Automotive | CERTIFICAT |
| Sens.range min | 440nm |
| Detection angle | 36° |
| Max.sensivity | 850nm |
| Package | ARRAY-1 |
| Rise/Fall time | 6000ns |
| Forward V/Vceo | 32V |
| SMD/THT | THT |
| Power dissip | 90mW |
| MOQ | 1000 |
| Op.temp.max. | 80°C |
| Packaging | BULK |
| Sens.range max. | 1070nm |
| Dimensions | see |
| Collector-emitter voltage | 32V |
| Mounting | THT |
| Multiplicity | 1 |
| Viewing angle | 36° |
| Gross weight | 0.07 g |
| Wavelength of peak sensitivity | 850nm |
| Photodetector type | phototransistor |
| Light current (Uce=5V, l=950nm) | 0.4...0.8mA |
| Collective package [pcs] | 200 |
| spg | 200 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
