ebm-papst

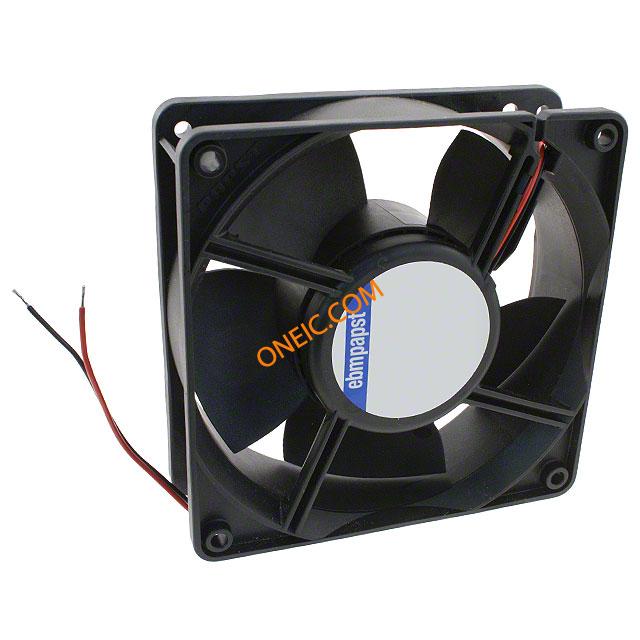

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Product Length | 119 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 75 |
| Fan Rotation | Counter Clockwise |
| Product Depth | 119 |
| Bearings | Ball |
| Nominal Speed | 3050 |
| Noise Level | 45 |
| Voltage Rating | 12 |
| Operating Input Voltage Range | 7 to 14.5 |
| Housing Material | Polybutylene Terephthalate Polymer |
| Power Rating | 4.3 |
| Maximum Airflow | 97.1 |
| Mounting | Flange Mount |
| Termination | Leads |
| Minimum Operating Temperature | -20 |
| Product Height | 38 |
| Subcategory | Blowers and Fans |
| Lead Time | 365 Days |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced |
| Noise | 45 dB(A) |
| Voltage - Rated | 12VDC |
| Standard Package | 25 |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Bearing Type | Ball |
| Size / Dimension | Square - 119mm L x 119mm H x 38mm W |
| Weight | 0.639 lb (289.85g) |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Air Flow | 97.0 CFM (2.75m³/min) |
| Fan Type | Tubeaxial |
| Life Expectancy | 62500 hrs @ 40°C |
| Voltage Range | 7 ~ 14.5VDC |
| Power (Watts) | 4.30W |
| RPM | 3050 RPM |
| rohs | Vendor undefined / Vendor undefined |
| AirFlow | 97.1CFM |
| BearingType | Ball |
| Brand/Series | 4200Series |
| Configuration | Square |
| Dimensions | 4.7x4.7x1.5(120x120x38)In.(mm) |
| Dimensions,Inches | 4.7x4.7x1.5In. |
| Dimensions,mm | 120x120x38mm |
| Direction | ExhaustoverStruts |
| FanType | DC |
| Material | Plastic |
| NoiseLevel | 45dBA |
| PowerRating | 4.3W |
| Power,Rating | 4.3W |
| PrimaryType | Fans |
| Rotation | CCW |
| Size | 4.7x1.5(120x38)In.(mm) |
| Size,Fan | 4.7x1.5(120x38)In.(mm) |
| Standards | ULRecognized,cULRecognized,CSACertified |
| Temperature,Operating,Maximum | 75°C |
| Type | Square |
| Voltage,Rating | 12VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
