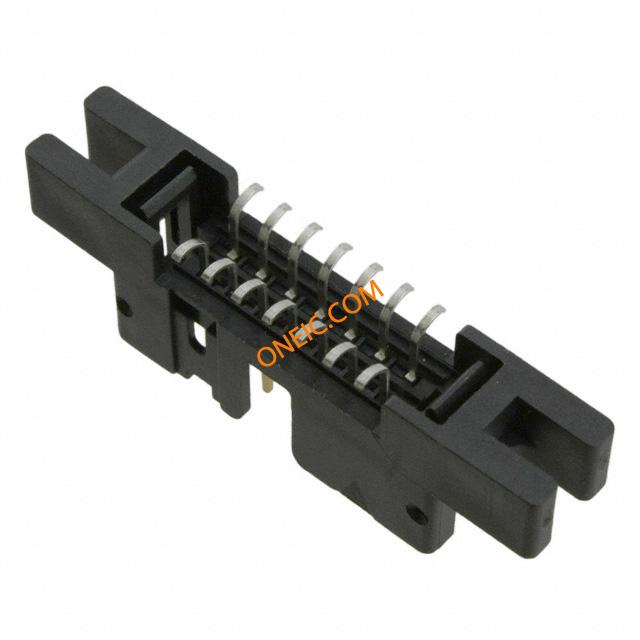

点击放大查看
N4614-2000-RB
| 制造商 | 3M Company |
| 描述 | CONN HEADER 14POS .100 SMD GOLD |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 位数 | 14 | 接触长度 - 配合 | 0.243" (6.17mm) |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 加载位置数 | All | ||
