3428-5403
| 制造商 | 3M Company |
| 描述 | CONN HEADER 20POS R/A GOLD T/H |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 颜色 | Gray | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Ejector |
| 排数 | 2 | 位数 | 20 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 加载位置数 | All | ||
相关型号
CHG-2020-001010-KEP
3m interconnect solutions
Conn IDC Connector SKT 20 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 20POS 24-22 AWG Headers & Wire Housings 20 POS 2.54MM HOUSING SKT
3341-6
3M Electronic Solutions Division
D-Sub Tools & Hardware JACK SOCKET KIT Headers & Wire Housings JACK SOCKET KIT HEXHEAD BOLT NUT WASHER 2-56X1/2 Connector Accessories Header Mounting Hardware BOLT, NUT & WASHER, 0.1IN HEADER HEXHEADBOLT,NutandWasher
3341-5
3m interconnect solutions
Connector Accessories Header Mounting Hardware D-Sub Tools & Hardware PAN HD CUT SCREW Headers & Wire Housings PAN HD CUT SCREW SCREW PANHEAD THRD CUT 4-24X5/16 Self tapping mounting screws for header SCREW, PAN HEAD MOUNTINGSCREW 3M 自攻安装螺钉, 使用于管座

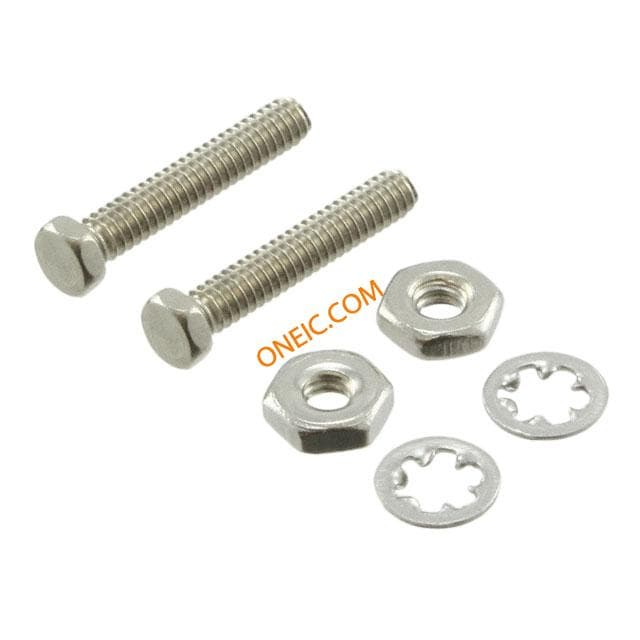

3341-6-500PK
3m interconnect solutions
HEX SCW/NUT/WASH/2-56/500PAK D-Sub Tools & Hardware .100 HEADER ACCS HEX W/LKWSH 2.56X1/2 Headers & Wire Housings .100" HEADER ACCS HEX W/LKWSH 2.56X1/2 HEXHEAD BOLT NUT WASHER 2-56X1/2
89120-0103
3M Electronic Solutions Division
Headers & Wire Housings 20P IDC SOCKET .100" Ã .100" Preassembled Wiremount for .050" Pitch Cable CONN SOCKET 20 POS IDC W/STR REL WIRE TO BOARD, RECEPTACLE, 20POS, 2ROW StrainRelief;for20PosIDCRibbonCableSocket;0.100Inch;0.5InchPitch;CenterBump 3M 891 系列 2行 20路 2.54mm节距 母 IDC 连接器 , 电缆安装
3448-2020
3M Electronic Solutions Division
Headers & Wire Housings STRAIN RELIEF FOR 20P CNCTR .100" Ã .100" Wiremount for .050" Pitch Cable CONN STRAIN RELIEF 20POS METAL
