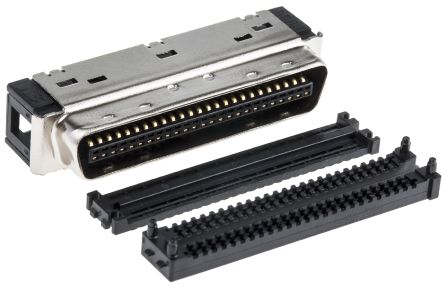

10150-6000EL
| 制造商 | |
| 描述 | 3M Male 50 Way Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port PLUG, MDR, CABLE MOUNT, 50WAY MDR50-WAYPLG 3M 50 路 1.27mm节距 直角 电缆安装 公 SCSI 连接器, IDT |
| 分类 |
合规参数
| RoHS | RoHS Compliant Part | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 150 V ac, 200 V dc | 击穿电压 | :500V |
| 最大额定电流 | 0.5A | 绝缘电阻 | :500Mohm |
| 最小供电电压 | 200VDC/150VAC | ||
机械参数
| 深度 | 9.1mm | 间距 | 1.27mm |
| 宽度 | 12.7mm | 高度 | 12.7 mm |
| 长度 | 41.1mm | 重量 | 0.01 |
| 端接方式 | IDT | 安装类型 | Right Angle |
| 连接器类型 | :Micro D | 接触镀层 | Gold over Nickel |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 总长度 | 41.1 mm | 触点数 | 50 |
| 接触件端接 | :IDC / IDT | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | SCSI | 连接器性别 | Male |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | +85°C | 结工作温度 | 85C |
