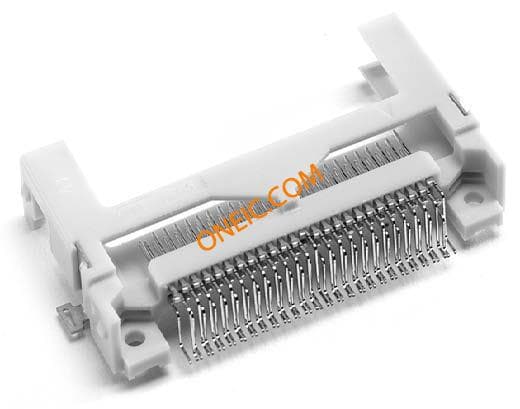

N7E50-7516PG-20
| 制造商 | |
| 描述 | Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A 50P CF CARD READER CompactFlash(TM) Type I, Surfacemount CF CARD HEADER TYPE I SMD Memory Card Connectors COMPACT FLASH TYPE I HEADER, CF I, SMT CARD HEADER, COMPACT FLASH TYPE I, 50POS Header;CompactFlashCard;CopperAlloy;SMT;LCP;0.5A;7E50Series |
| 分类 |
商业参数
| 最小起订量 | 100 | 产品 | Headers |
| 单位包装 | 100 | 零件号别名 | 54745245942 JE150339370 |
| 产品类别 | Memory Card Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 0.5 A | ||
机械参数
| 颜色 | Beige | 间距 | 0.635 mm |
| 高度 | 26.5 mm | 长度 | 46.6 mm |
| 重量 | 0.07 | 包装方式 | Bulk |
| 方向 | Horizontal | 屏蔽类型 | -55 TO 85 |
| 安装类型 | Surface Mount | 连接器类型 | Connector |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Copper Alloy | 安装特性 | Normal, Standard - Top |
| 端接样式 | SMD | 板面高度 | 0.261" (6.64mm) |
| 触点数 | 50 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 50 | 接触镀层厚度 | Flash |
| 插拔方式 | Push In, Pull Out | ||
产品信息
| 类型 | Compact Flash Card | 连接器性别 | HDR |
| 系列 | GOLD | 产品特性 | Board Guide, Card Guide |
| 卡类型 | CompactFlash® - Type I | 匹配码 | N7E507516PG20 |
| 标准交期 | 7 weeks | ||
相关型号
N7E50-7516PG-20
3m interconnect solutions
Conn Compact Flash Card HDR 50 POS 0.635mm Solder RA SMD 0.5A 50P CF CARD READER CompactFlash(TM) Type I, Surfacemount CF CARD HEADER TYPE I SMD Memory Card Connectors COMPACT FLASH TYPE I HEADER, CF I, SMT CARD HEADER, COMPACT FLASH TYPE I, 50POS Header;CompactFlashCard;CopperAlloy;SMT;LCP;0.5A;7E50Series

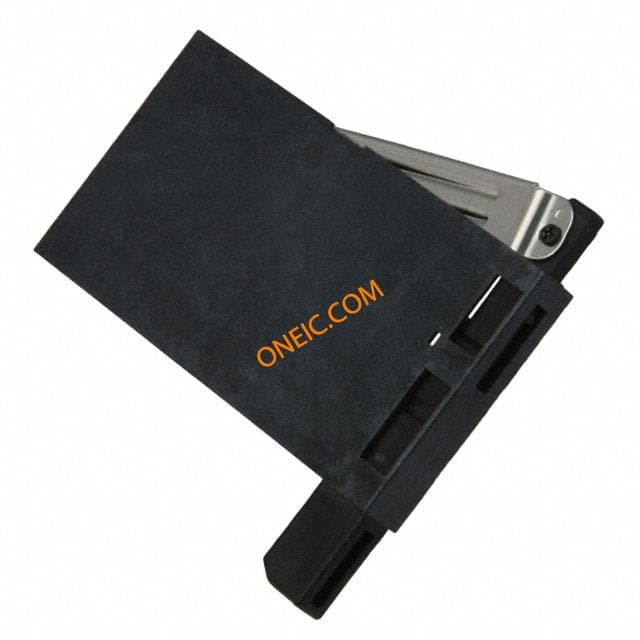

D7E50-7316-03
3m interconnect solutions
Connector Accessories Right Button Ejector Card Header RIGHT BUTTON EJECTOR TYPE1 Guide for compact flash memory board Memory Card Connectors CF 1 CARD HEADER SURFACE MOUNT EJECTOR, HEADER, TYPE1, SURFACE MT GUIDEFORCOMPACTFLASH CF card ejector, D7E50-7316-03, 3M 3M 存储卡连接器
3505-34
3m interconnect solutions
Connector Accessories Retainer Clip Stainless Steel CF CARD RETAINER CLIP CONN Memory Card Connectors RETAINER CLIP FOR SMT CF I HDR CF CARD RETAINER CLIP RETAINER CLIP, CF CARD, HEADER
D7E50-7316-02
3M Electronic Solutions Division
Memory Card Connectors BUTTON EJECTOR CF TYPE I RIGHT BUTTON EJECTOR TYPE1 SMT
