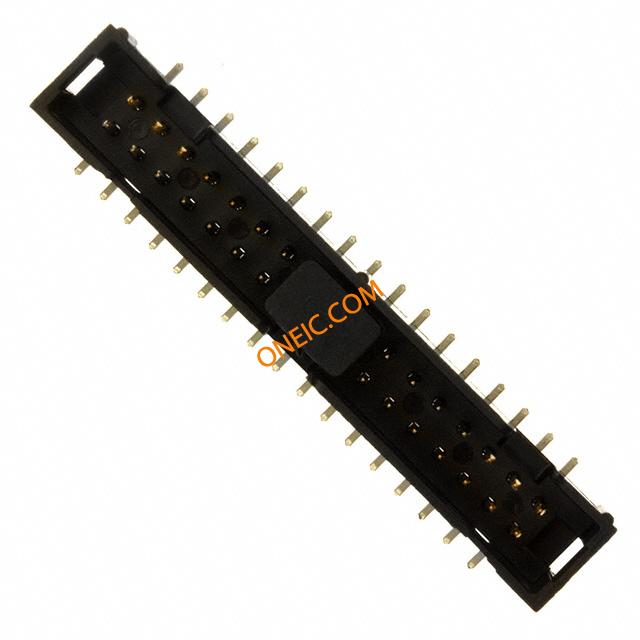

N2534-6V0C-RB-WF

制造商	3M Company
描述	Conn Shrouded Header HDR 34 POS 2.54mm Solder ST SMD T/R Headers & Wire Housings MOLDED PICK CAP 34 PIN 30u GOLD CONN HEADER 34POS SMT VERT 30AU 3M 2500 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 2A Pin header SMD, DIN 41651 34P, N2534-6V0C-RB-WF, 3M 3M 2500 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	MSH34KCT	零件号别名	05111174279 80000913626
产品类别	Headers & Wire Housings	标准包装数量	Tape & Reel
工厂包装数量	200

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

测试电压	1	极数	34
最大额定电流	2A

机械参数

颜色	Black	间距	2.54 mm
包装方式	Reel	方向	直
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Male Pin	安装类型	Surface Mount
连接器类型	Header, Shrouded	接触镀层	Gold Over Nickel
安装样式	SMD/SMT	排数	2
触头材料	Copper Alloy	壳体材料	Glass fibre (GF)
端接排数	焊接	端接样式	Solder
触点数	34	位数	34
第一连接器极性	Male	接触长度 - 配合	0.243" (6.17mm)
接触镀层厚度	30µin (0.76µm)

产品信息

类型	Shrouded Header	连接器性别	HDR
系列	2500	覆盖范围	覆盖
CAD图纸	3D CAD Model	产品子类型	Headers - Shrouded
放大器类型	50.5	加载位置数	All

环境参数

工作温度

-55...+105 °C

文档与媒体

在线文档

mediawebserver.dyn?6666660Zjcf6lVs6EVs66SyIrCOrrrrQ-
