点击放大查看

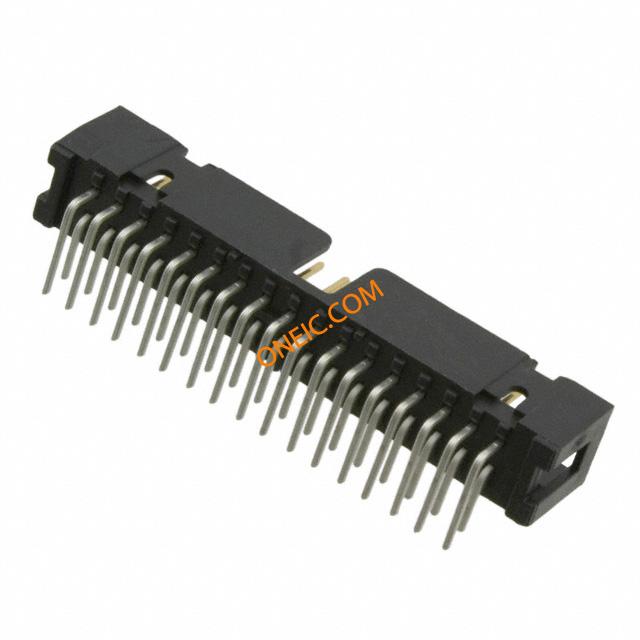

N2534-5003RB
| 制造商 | 3M Company |
| 描述 | Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole 34/HDR/LP/RA/HT |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触点数 | 34 | 位数 | 34 |
| 接触长度 - 配合 | 0.243" (6.17mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
