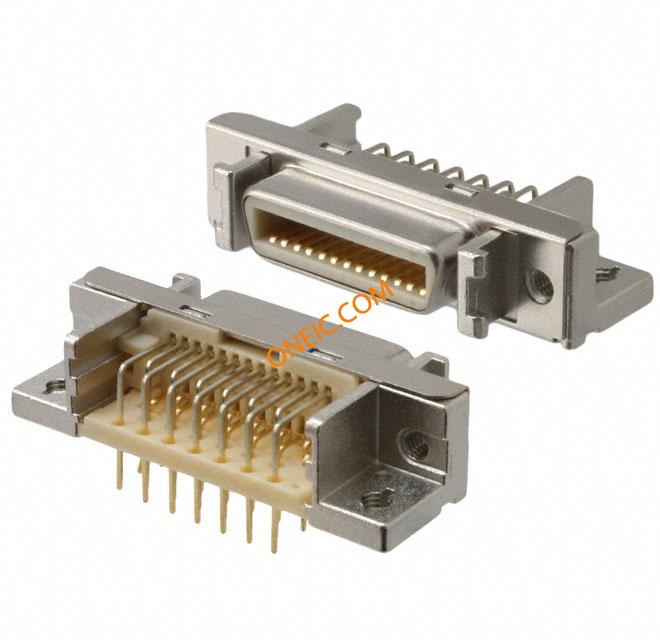

N10226-5212PC
| 制造商 | |
| 描述 | Conn SCSI RCP 26 POS 2.54mm Solder RA Thru-Hole 26 Terminal 1 Port D-Sub Micro-D Connectors 26P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 26POS R/A RECPT Socket MDR Panel 102 Series R/A 26 way 0.050 Mini D Ribbon; Thru-Hole; Right Angle Socket; Fully Shielded 26 Positions SOCKET, MDR, THT, RA, 26WAY 0.050MiniDRibbon,Thru-Hole,RightAngleSocket,FullyShielded26Positions 3M MDR 102 系列 1.27mm 节距 26 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座 |
| 分类 |
商业参数
| 零件号别名 | 54745240767 JE150333324 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 量程（°/s） | :3M - 102 Series | 最大额定电流 | 1 A |
机械参数
| 深度 | 9.4mm | 间距 | 2.54 mm |
| 宽度 | 13.9mm | 长度 | 37.2mm |
| 重量 | 1.28 | 端接方式 | Solder |
| 安装类型 | Through Hole | 外壳镀层 | Gold |
| 连接器类型 | Receptacle | 接触镀层 | Gold |
| 法兰特征 | Insert, Threaded (M2.5); Latchblocks | 安装样式 | Through Hole |
| 排数 | 2 | 连接器样式 | Outer Shroud Contacts |
| 触头材料 | Copper Alloy | 壳体材料 | Glass Fibre Reinforced PET |
| 尺寸/外形 | 37.2 x 13.9 x 9.4mm | 端接样式 | Solder |
| 触点数 | 26 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 26 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 系列 | 102 | 产品特性 | Shielded |
环境参数
| 工作温度 | +105°C | ||
文档与媒体
