点击放大查看

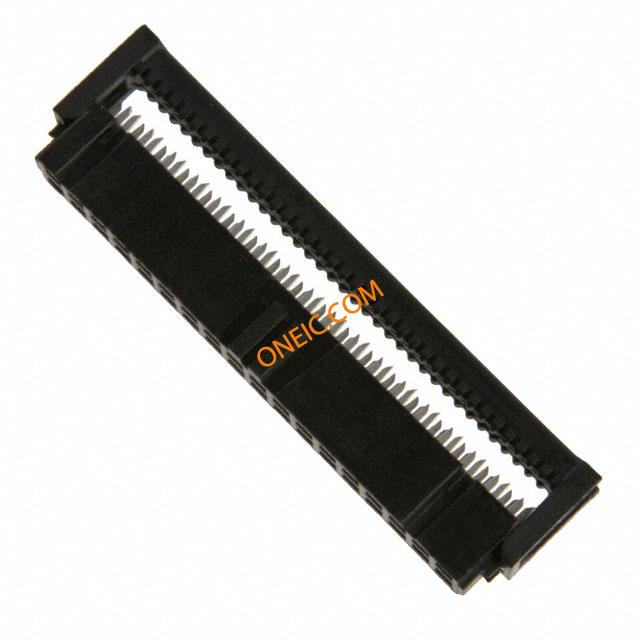

D89136-0031HK
| 制造商 | |
| 描述 | Conn IDC Connector SKT 36 POS 2.54mm IDT ST Cable Mount Bulk Headers & Wire Housings 36P SKT W/O STRN REL W/O CNTR BUMP 10U AU .100" Ã .100" for .050" Pitch Cable CONN 36POS IDC SOCKET GOLD |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 05111990696 80001204231 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 1 KV | 最大额定电流 | 1 A |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 导线线规 | 28-26 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Free Hanging |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 36 |
| 位数 | 36 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | D89 | 产品特性 | Feed Through |
| 产品子类型 | Receptacles / Sockets - Housings | ||
