D89126-0101HK
| 制造商 | 3M Company |
| 描述 | Conn IDC Connector SKT 26 POS 2.54mm IDT ST Cable Mount .100" Ã .100" for .050" Pitch Cable CONN 26POS IDC SOCKET GOLD W/POL Headers & Wire Housings 26P SKT W/O STRN REL W/CNTR BUMP 10U AU |
| 分类 |
商业参数
| 零件号别名 | 05111990681 80001204082 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 1 kV | 最大额定电流 | 1 A |
机械参数
| 颜色 | Gray | 间距 | 2.54 mm |
| 包装方式 | Tube | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Gold Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 26 |
| 位数 | 26 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | D89 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | ||
相关型号
3429-D302
3M Electronic Solutions Division
Headers & Wire Housings 52P 3WL CONDO HDR RA LNG LTCH/EJECT CONN HEADER STKD 26POS R/A LO
N3429-6602RB
3M Electronic Solutions Division
Headers & Wire Housings BOARDMT HDR 26P .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 26POS STR GOLD T/H
N3429-5603RB
3m interconnect solutions
FOUR-WALL HEADER, 3000 SERIES CONN HEADER 26POS R/A GOLD T/H Headers & Wire Housings 4-WALL HDR LTCH/EJCT HI-TMP 26PN RT L.094

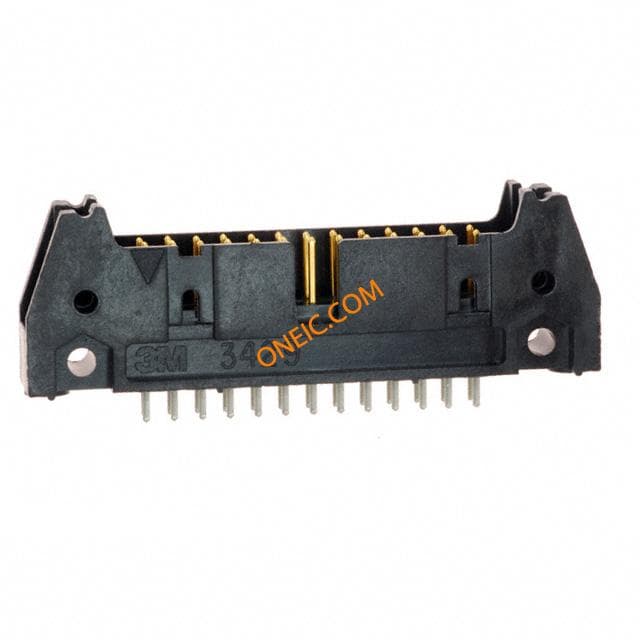

N3429-6002RB
3m interconnect solutions
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER STRGT 26 CONTACT 3M 3000 Series 2.54mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings BOARDMT HDR 26P NO LATCH/EJECTOR ConnEjectorHeaderHDR26POS2.54mmSolderSTThru-Hole Pin header DIN 41651 26P, N3429-6002RB, 3M 3M 3000 系列 2.54mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
3429-6203
3m interconnect solutions
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 26PS STR SHORT LATCH

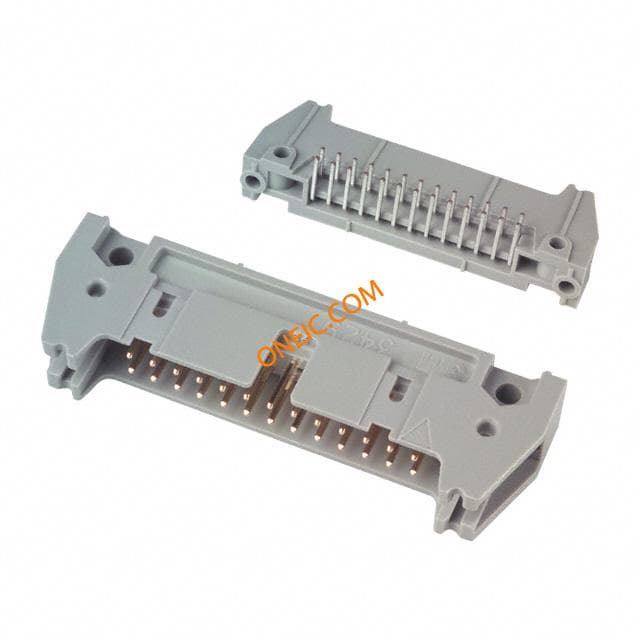

3429-5002
3m interconnect solutions
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle PROTECT HEADER RT/ANG 26 CONTACT WIRE-BOARD CONN, HEADER, 26POS, 2.54MM

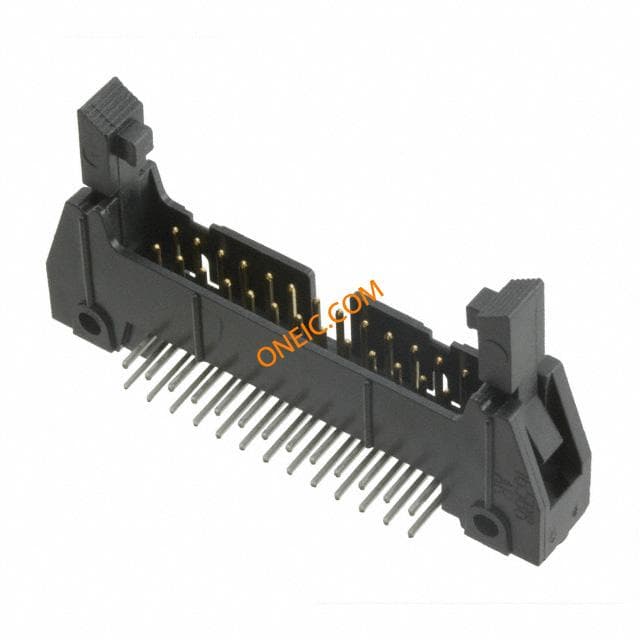

D3429-5302-AR
3m interconnect solutions
Conn Ejector Header HDR 26 POS 2.54mm Solder RA Thru-Hole CONN HEADER 26POS R/A LONG LATCH WIRE-BOARD CONN, HEADER, 26POS, 2.54MM
D2526-5002-AR
3m interconnect solutions
Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole CONN HEADER 26POS R/A 10GOLD Headers & Wire Housings 26P 4-WALL HEADER RIGHT ANGLE 10U AU
3429-5603
3M Electronic Solutions Division
ヘッダ & ワイヤハウジング 26P R/A SOLDER TAIL CONN HEADER 26POS R/A LONG LATCH
3429-6602
3M Electronic Solutions Division
Headers & Wire Housings USE 517-N3429-6302RB .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 26POS STR LONG LATCH
3429-5502
3M Electronic Solutions Division
Headers & Wire Housings 26P R/A SOLDER TAIL .100" Ã .100" Latch/Ejector, Straight and Right Angle 26RT PROT HDR S SNAPIN LATCH EJT

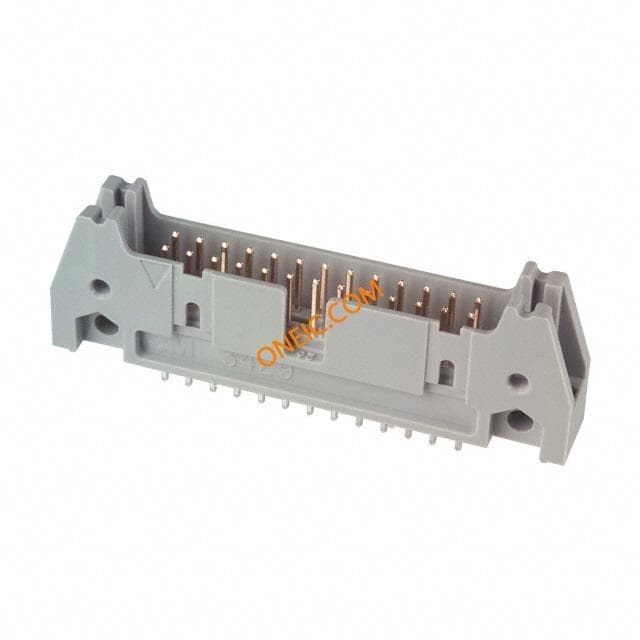

3429-6002
