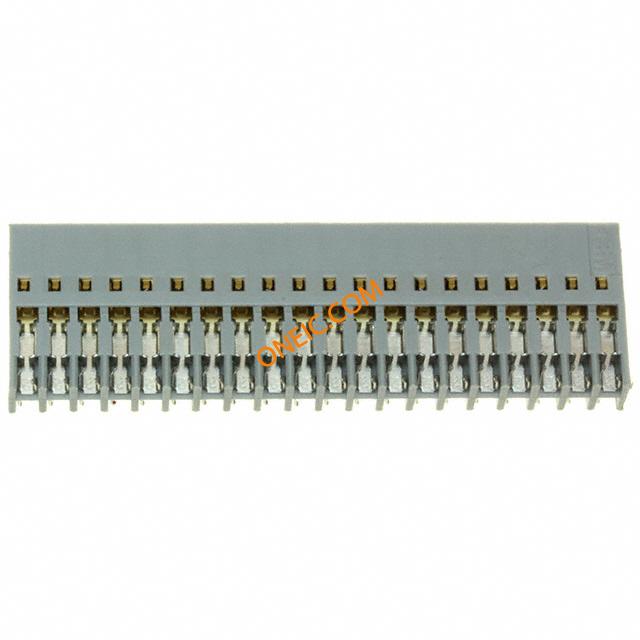

CHG-2040-001010-KEP

制造商	3M Company
描述	Conn IDC Connector SKT 40 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 24-22 AWG
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

机械参数

颜色	Gray	间距	2.54 mm
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	22-24 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
电缆端接方式	IDC	触点数	40
位数	40	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
产品特性	Closed End

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs666UB_COrrrrQ-

在线文档

CHG-20xx-001010-Kyy

在线文档

CHG-20 Series
