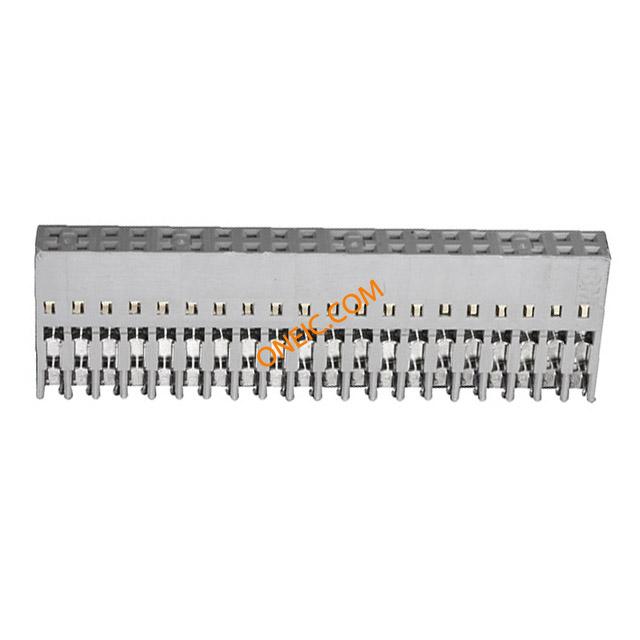

CHG-2040-001010-KCP

制造商	3M Company
描述	Conn IDC Connector SKT 40 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 40POS 28-26 AWG Headers & Wire Housings 40 POS 2.54MM HOUSING SKT .100WiremountSocket,2rowfor.1"PitchNotchedflatcableordiscretewire
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400766335 80610420228	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

电气参数

最大额定电流

1.5 A

机械参数

颜色	Gray	间距	2.54 mm
重量	1 lb	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	26-28 AWG
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Cable	排数	2
触头材料	Copper Alloy	电缆端接方式	IDC
端接样式	IDC	第一触头极性	Socket (Female)
触点数	40	位数	40
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	CHG	产品特性	Closed End
产品子类型	Receptacles / Sockets - Housings
