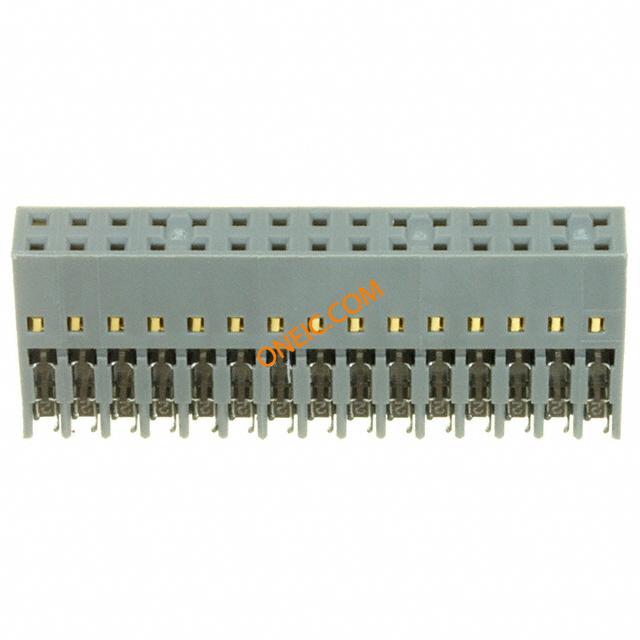

CHG-2030-001010-KEP

制造商	3M Company
描述	Conn IDC Connector SKT 30 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 30POS 24-22 AWG Headers & Wire Housings 30 POS 2.54MM HOUSING SKT
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	05400776271 80610602486	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	100

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

电气参数

最大额定电流

2 A

机械参数

颜色	Gray	间距	2.54 mm
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	22-24 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	Cable
排数	2	触头材料	Copper Alloy
电缆端接方式	IDC	端接样式	IDC
第一触头极性	Socket (Female)	触点数	30
位数	30	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
系列	CHG	产品特性	Closed End
产品子类型	Receptacles / Sockets - Housings

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs666UB_COrrrrQ-

在线文档

CHG-20xx-001010-Kyy

在线文档

CHG-20 Series

在线文档

mediawebserver?mwsId=66666UuZjcFSLXTt4XftLXs6EVuQEcuZgVs6EVs6E666666--

相关型号

暂无图片

3440-5602

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30POS R/A LONG LATCH Headers & Wire Housings 30 PIN .112 30AVG 60:40 SNAP-IN

¥17.3400

详情

暂无图片

3440-6602UG

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole *NCNR CONN HEADER 30POS STR LONG LATCH

详情

4630-6000

3m interconnect solutions

Conn Ejector Header PL 30 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 30 POS W/FLANGE HEADER, IDC, LUGGED, 30WAY

¥33.5240

详情

暂无图片

3440-5503

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 30PS R/A SHORT LATCH Headers & Wire Housings 30 PIN .155 30AVG 60:40 SNAP-IN

¥18.0880

详情

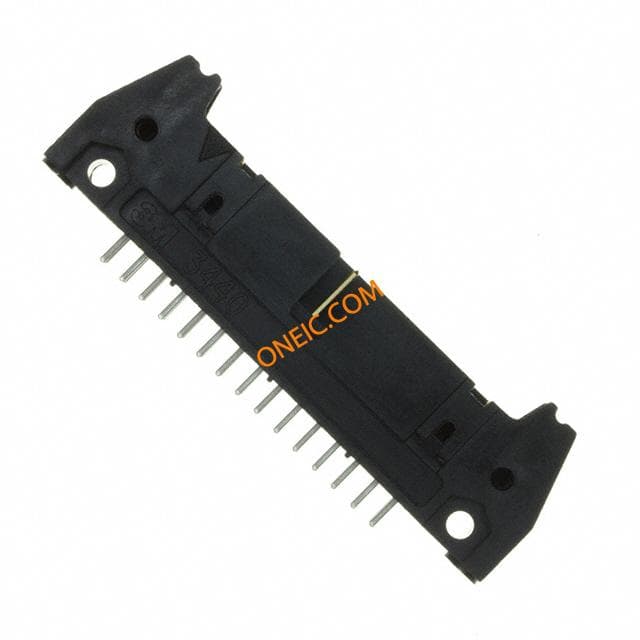

D3440-6002-AR

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole CONN HDR 30POS STR NO LATCH 10AU

¥9.4554

详情

N3440-620T02RB

3m interconnect solutions

Conn Ejector Header HDR 30 POS 2.54mm Press Fit ST Thru-Hole .100" Ã .100" Latch/Ejector, Straight, Compliant Pin CONN HEADER 30PS STR SHORT LATCH Headers & Wire Housings 30PS STR SHORT LATCH HEADER

¥42.8400

详情

D2530-6002-AR

3m interconnect solutions

Conn Shrouded Header HDR 30 POS 2.54mm Solder ST Thru-Hole CONN HEADER 30POS VERT 10GOLD Headers & Wire Housings 30P 4-WALL HEADER STRAIGHT 10U AU

¥9.9280

详情

暂无图片

4630-7305

3M Electronic Solutions Division

ヘッダ & ワイヤハウジング 30 CON CLSD END MNT FLNG W/THRD INS .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 30POS W/FLANGE&INSE Headers & Wire Housings 30 CON CLSD END MNT FLNG W/THRD INS

¥28.9000

详情

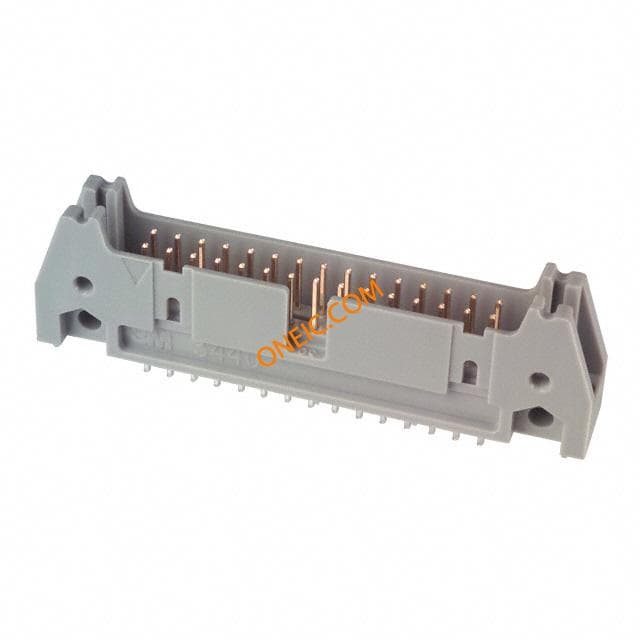

3440-6002
