首页产品分类连接器解决方案矩形连接器FPC/FFC矩形连接器CHG-2016-001010-KCP

点击放大查看

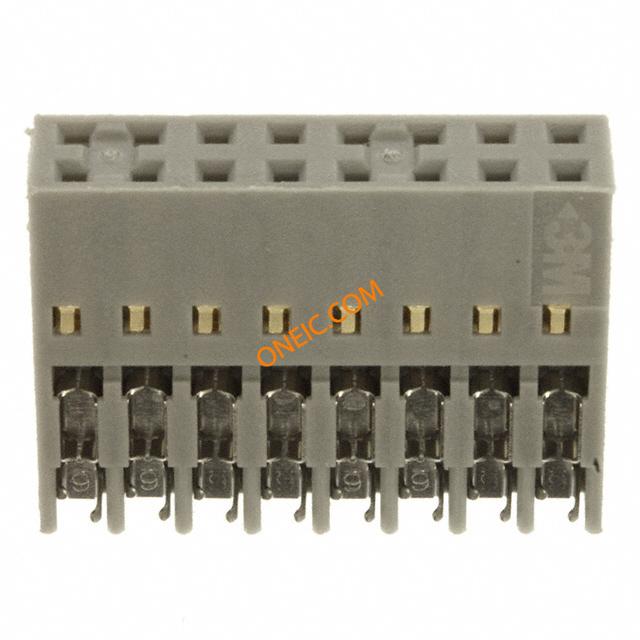

CHG-2016-001010-KCP

制造商	3M Company
描述	Conn IDC Connector SKT 16 POS 2.54mm IDT ST Cable Mount .100" Ã .100" Pak 100 Wiremount, Two Row for .100" Pitch Notched Flat Cable or Discrete Wire CONN RECEPT IDC 16POS 28-26 AWG
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS

Lead free / RoHS Compliant

RoHS合规（认证）

Yes

机械参数

颜色	Gray	间距	2.54 mm
包装方式	Bulk	导线类型	Discrete or Ribbon Cable
导线线规	26-28 AWG	排间距	0.100" (2.54mm)
端接方式	IDT	触头类型	Female Socket
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	排数	2
电缆端接方式	IDC	触点数	16
位数	16	接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	SKT
产品特性	Closed End

文档与媒体

在线文档

mediawebserver?6666660Zjcf6lVs6EVs666UB_COrrrrQ-

在线文档

CHG-20 Series

相关型号

N3408-5303RB

3m interconnect solutions

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole .100" Ã .100" Latch/Ejector, Straight and Right Angle CONN HEADER 16POS R/A LONG LATCH Headers & Wire Housings BOARDMT HDR 16P HEADER, RIGHT ANGLE, L/LATCH, 16WAY

¥9.2480

详情

暂无图片

3408-1603

3m interconnect solutions

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 16 PIN 3WALL RT ANG CONN HEADER 16POS R/A GOLD T/H

¥13.5320

详情

暂无图片

N3408-6602

3m interconnect solutions

Conn Ejector Header HDR 16 POS 2.54mm Solder ST Thru-Hole CONN HEADER 16POS STR LONG LATCH

详情

暂无图片

2516-6003UG

3m interconnect solutions

Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole CONN HEADER 16POS STR GOLD T/H

详情

3408-D202

3m interconnect solutions

Conn Ejector Header HDR 32 POS 2.54mm Solder RA Thru-Hole CONN HEADER STKD 16POS R/A SH 801300361813408-D202=16/HDR/3W/CONDO/SL/.112/30

¥50.5145

详情

D3408-5202-AR

3m interconnect solutions

Conn Ejector Header HDR 16 POS 2.54mm Solder RA Thru-Hole CONN HEADER 16PS R/A SHORT LATCH Headers & Wire Housings 16P RT ANGLE HEADER SHORT LATCH 10U AU

¥6.3512

详情

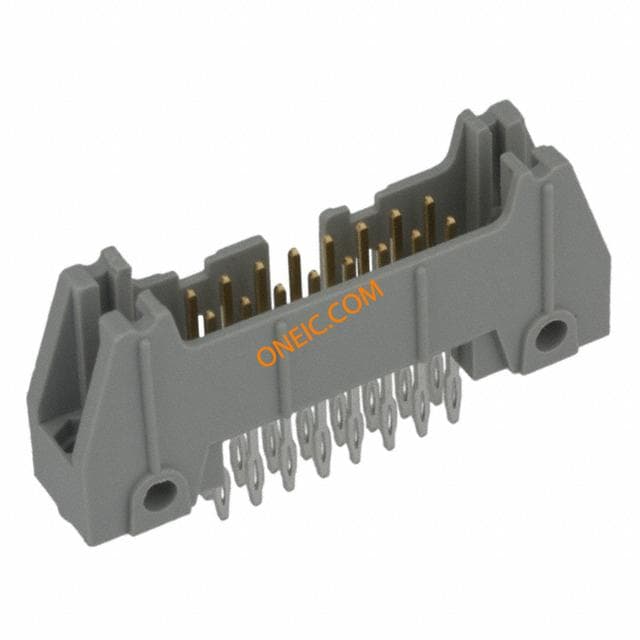

3408-600T02TC
